S999 is equipped with 1408 multi-constellation channels,
guarantees precise and reliable positioning by supporting all GNSS
signals, including GPS, GLONASS, Galileo, QZSS, IRNSS, and BeiDou.
It
features an integrated 4G modem and a 1-Watt UHF radio operating in the
410-470 MHz and 902.4-928 MHz frequency ranges, ensuring constant
connectivity and an extended working range.

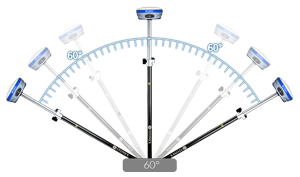

The Advanced IMU Technology
Enables tilted measurements of up to 60° with rapid initialization,
enhancing field productivity by as much as 40%.

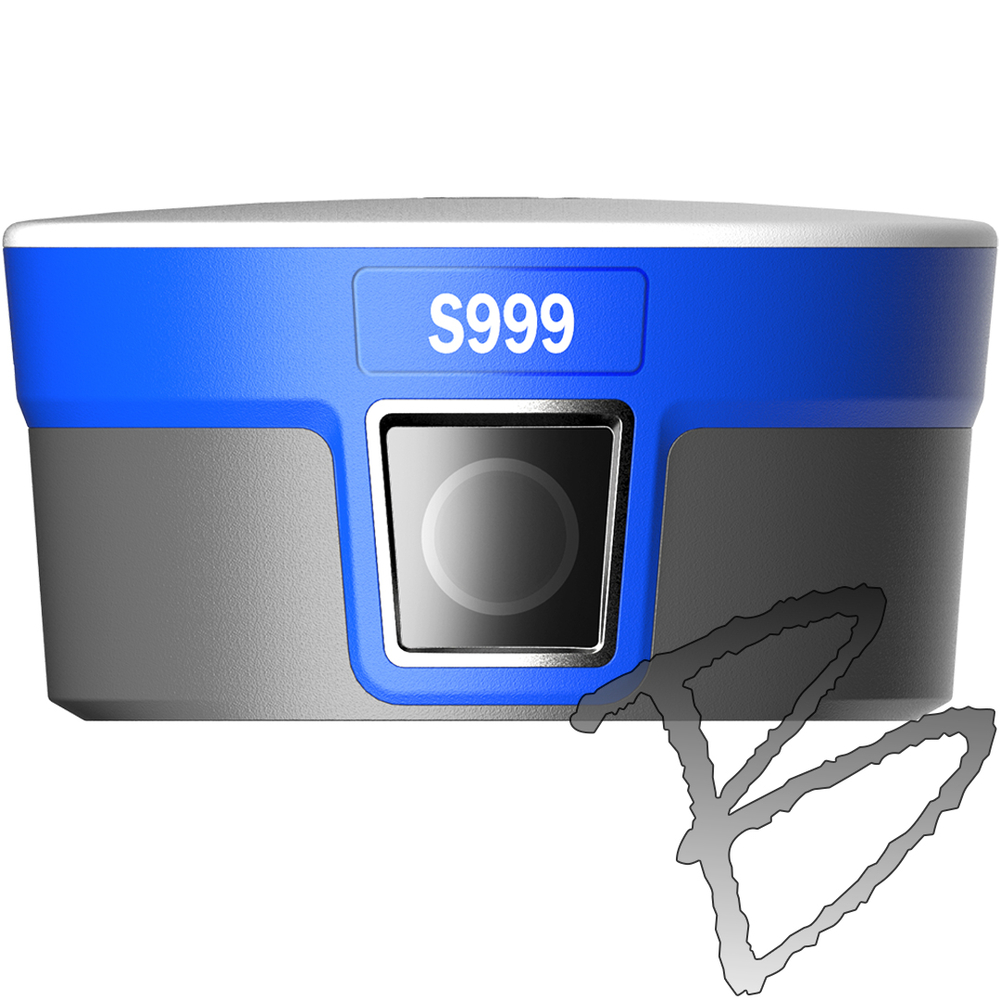

The S999 receiver is
also equipped with two cameras: one for stakeout and one for
photogrammetric applications, expanding the system’s usage
possibilities.
Visual Stake Out:
The front
camera simplifies point staking by clearly showing the surrounding area,
helping you accurately identify the point of interest.
As you get
closer, it automatically switches to the lower camera for precise
framing, ensuring reliable measurements.
Cube-a’s interface uses visual
aids to guide surveyors to the exact staking location.
A graphical
display indicates both the direction and distance to the point,
adjusting as the operator approaches.
Measuring Inaccessible Points:
The system allows you to record a video of the area you want to measure.
The program extracts several photos that the operator can use to align
the points to be measured.
Cube-a then immediately provides the calculated coordinates, which can be easily recorded.
Measurements can be taken offline as well.
Online Point Cloud and Mesh
The acquired videoof an area can be exported and uploaded to photogrammetry software
(Cube-3D) to generate a three-dimensional model (point cloud and mesh).
Alternatively, it can be sent directly from Cube-a to the Stonex VScloud
for semi-real-time data processing, resulting in a 3D model (point
cloud and mesh).
The survey can then be visualized and managed directly
on the Android controller within Cube-a (v. 7).

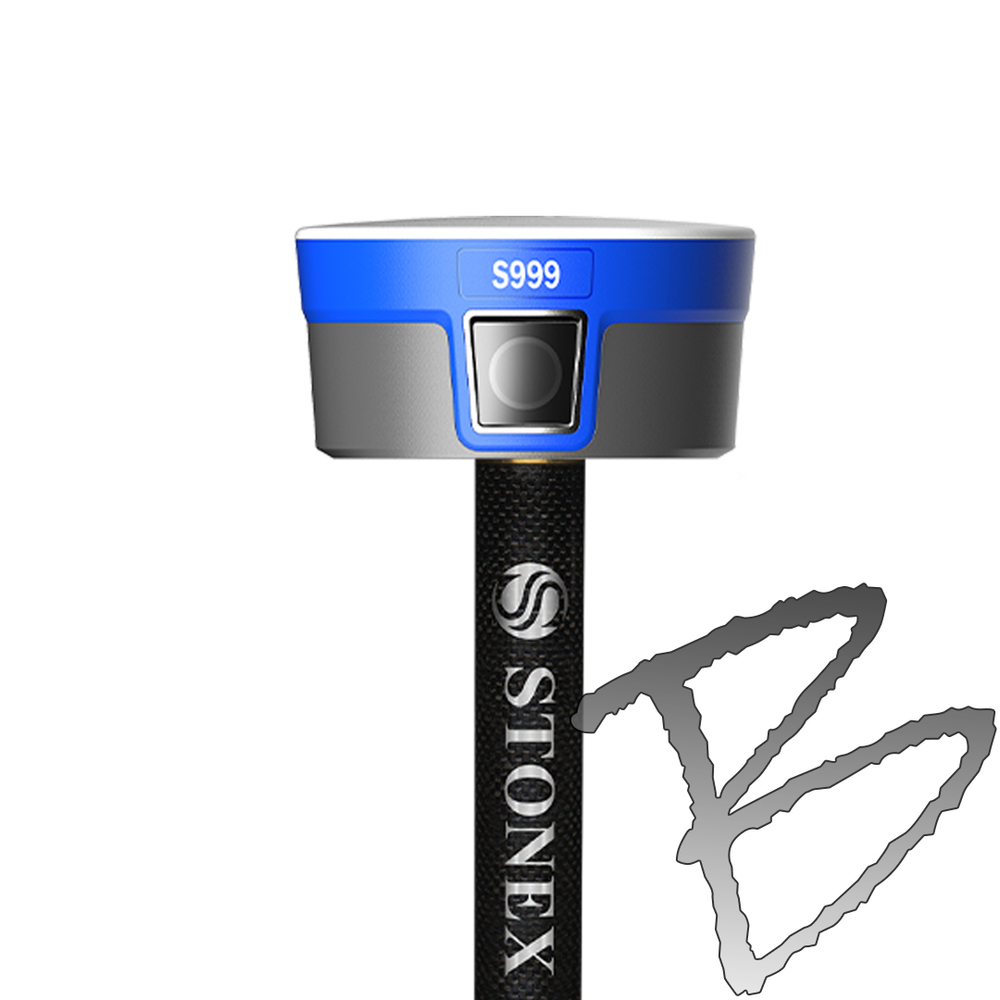

Reciever shown on Pole, Sold Separately
Features:
MULTI CONSTELLATION: S999 can track and utilize signals from multiple satellite constellations, such as GPS, Galileo, GLONASS, BeiDou, QZSS and IRNSS.
IMU TECHNOLOGY: The integrated IMU allows the receiver to automatically compensate for pole tilt up to 60 degrees, boosting surveying speed and efficiency.
SMALL & LIGHTWEIGHT: The small and lightweight design of the S999 makes it highly portable
RUGGED RTK GNSS WITH IP68: S999 is a durable and waterproof high-precision positioning solution designed for challenging outdoor environments.
DOUBLE FREQUENCY RADIO: S999 GNSS receiver has integrated UHF double frequency radio. 410-470MHz and 902.4-928 MHz.
CAMERAS: S999 Receiver is equipped with two cameras: one for stakeout and one for photogrammetric applications
