• QLV Pole with a Wild Tip
• Aluminum Swiss Style Telescoping Prism Pole with QLV Locking Mechanism – 10ths and Metric.
• These telescoping poles with QLV™ locking mechanisms are easily the most user-friendly prism poles on the market.

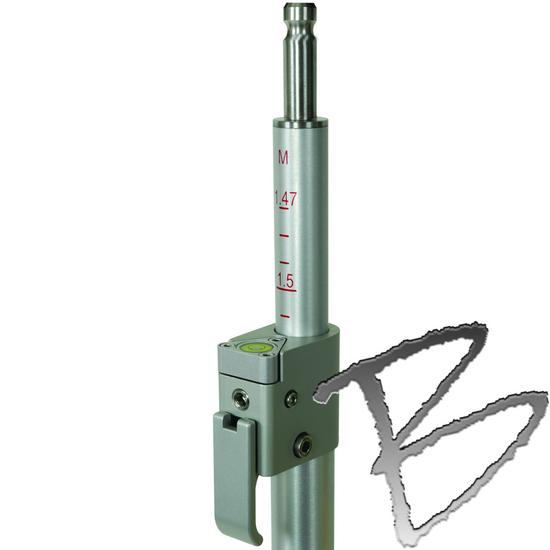

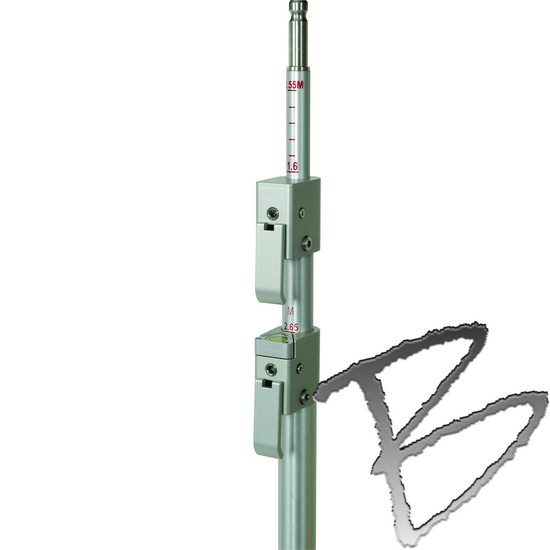

• The QLV (Quick Lever with Vial) locking assembly keeps the high-vis 40-minute vial on the lock itself, out of the way of other accessories like data collector clamps and bipods that need space on the pole.
• The small diameter, 1" OD, (25 mm exact) bottom section fits Swiss-style slide-on controller brackets.
• It reads direct for any 86 mm height prisms.
• This pole is anodized clear with red graduations and red logo.
• It has a two piece replaceable point.
• The Pole is Compatible with Leica Style Prisms
• (Can be used for Robotic Wild Tip situations)

Pole Details:

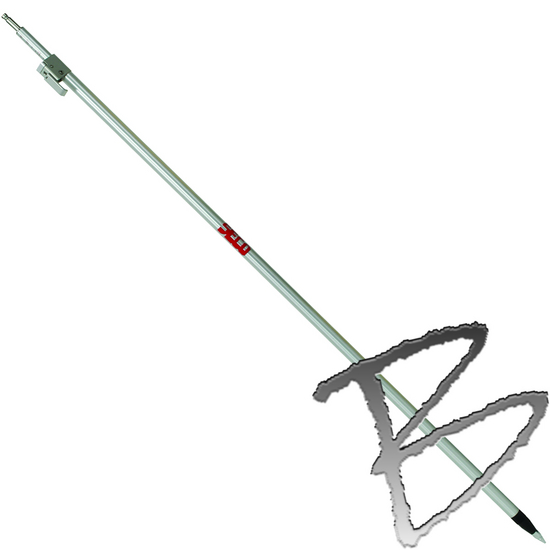

• The 8ft #5802-10 pole extends to 8.3 ft (2.5 m) and collapses to 4.80 ft (1.46 m).
• It Weighs 2.50 lb (1.13 kg).

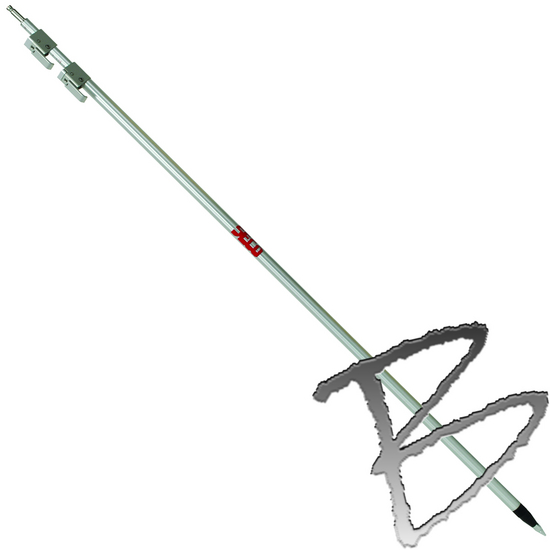

• The 12ft #5802-20 pole extends to 12 ft (3.6 m) and collapse to 5.10 ft (1.55 m).
• It Weighs 3.55 lb (1.61 kg).
