Schonstedt u-LOCATE Pipe & Cable Locator
  • Trust, but verify. Scan an area for utilities before you dig.
  • Does your job involve excavating in or around buried pipes and cables?
  • Damaging buried utilities can be costly and dangerous.
  • u-LOCATE allows you to quickly and accurately locate underground utilities, helping prevent costly damages, utility strikes, and service outages.
  • Avoid hitting or damaging buried utilities
  • Robust locator, designed for all types of weather and environments
  • Easy to use, right when you need it
  • Left/right arrows and audio signals help guide you towards the buried utility
  • Discriminates between utilities and other buried materials - locate the utility you want
  • Depth estimation at the press of a button
  • Minimize downtime with online training videos and support
There are two models to choose from:

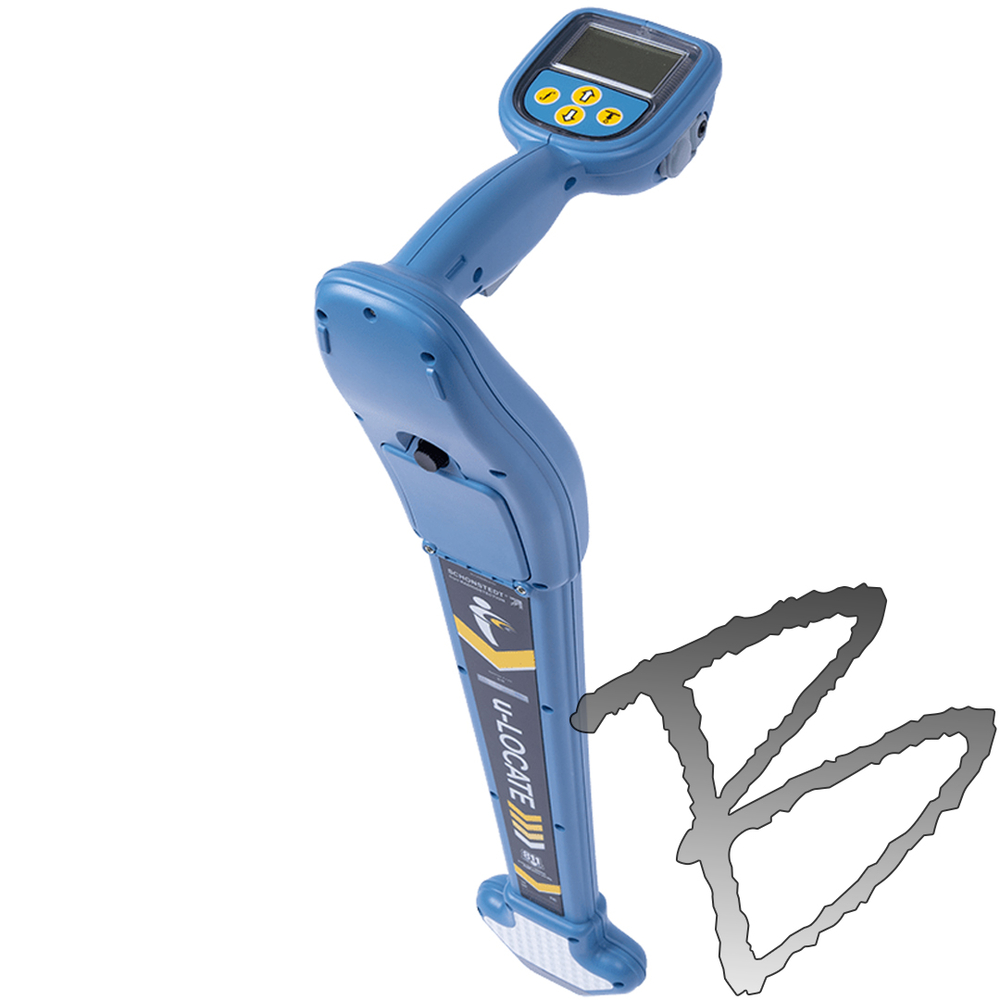

  • u-LOCATE
    • Single frequency locator with passive mode and depth
    • 82 kHz Active Frequency
    • 1W Transmitter

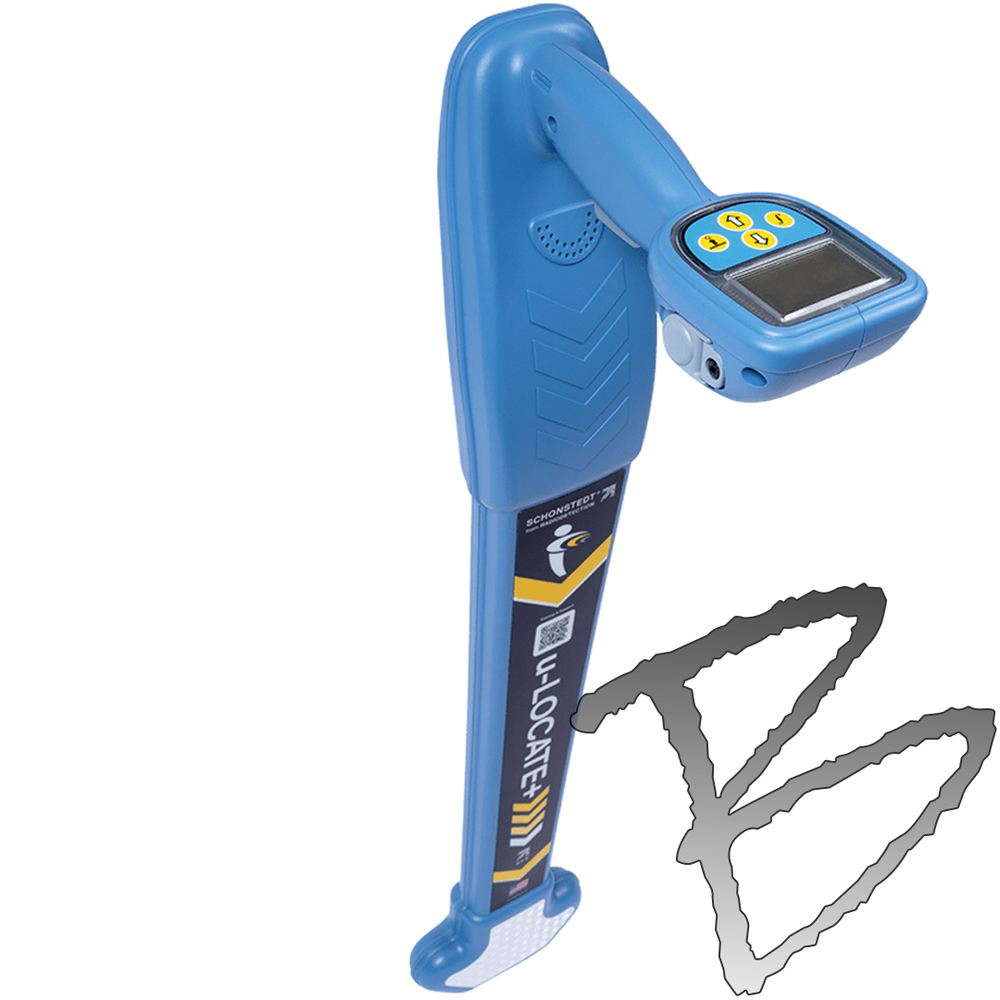

  • u-LOCATE+
      u-LOCATE Locator Features
    • Dual frequency locator with 512 Hz sonde capability, passive mode, and depth
    • 33, and 82 kHz Active Frequencies
    • 1W Transmitter
    • (512 Hz Sonde sold separately)

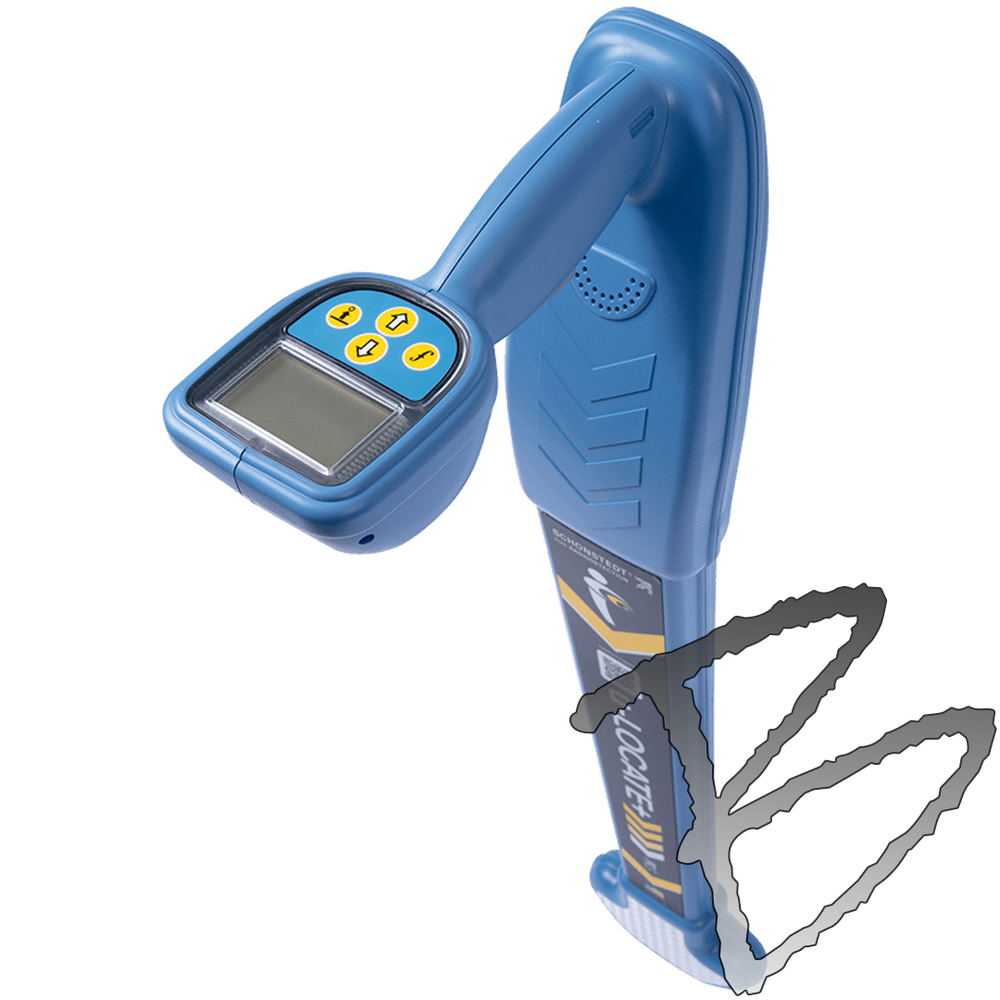

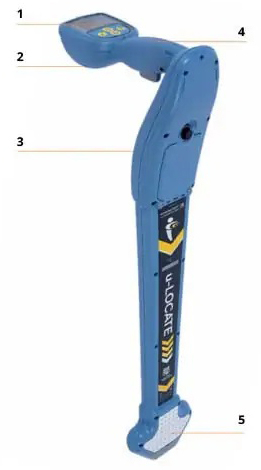

u-LOCATE Locator Features

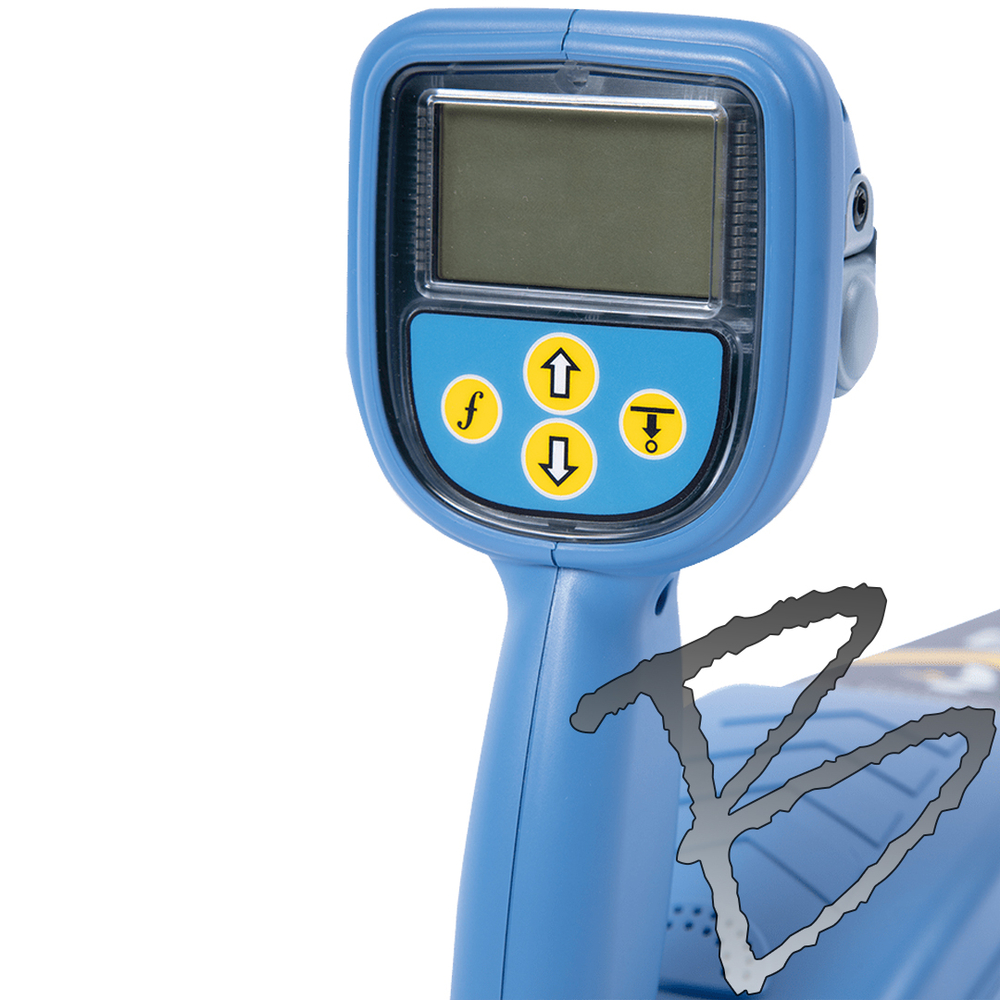

  1. High contrast screen - Provides clarity even in bright sunlight
  2. Headphone socket - For improved audio isolation
  3. Rugged construction - Shock resistant, casing protects against knocks, drops, water and dust
  4. Light weight and ergonomic design for comfortable use
  5. High visibility reflective design helps protect operators and equipment

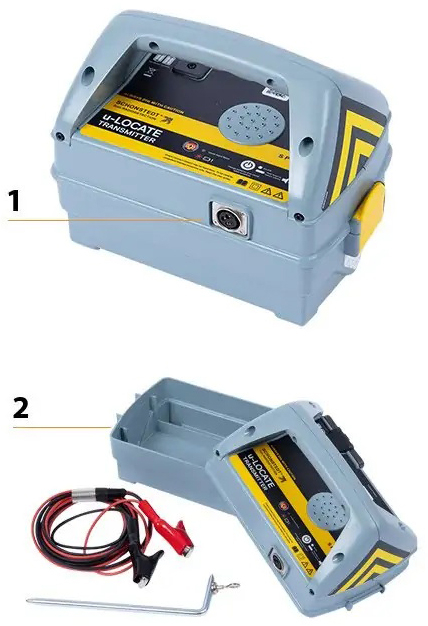

u-LOCATE Transmitter Features - Locate more utilities with dual power capability
  1. Accessory connection socket

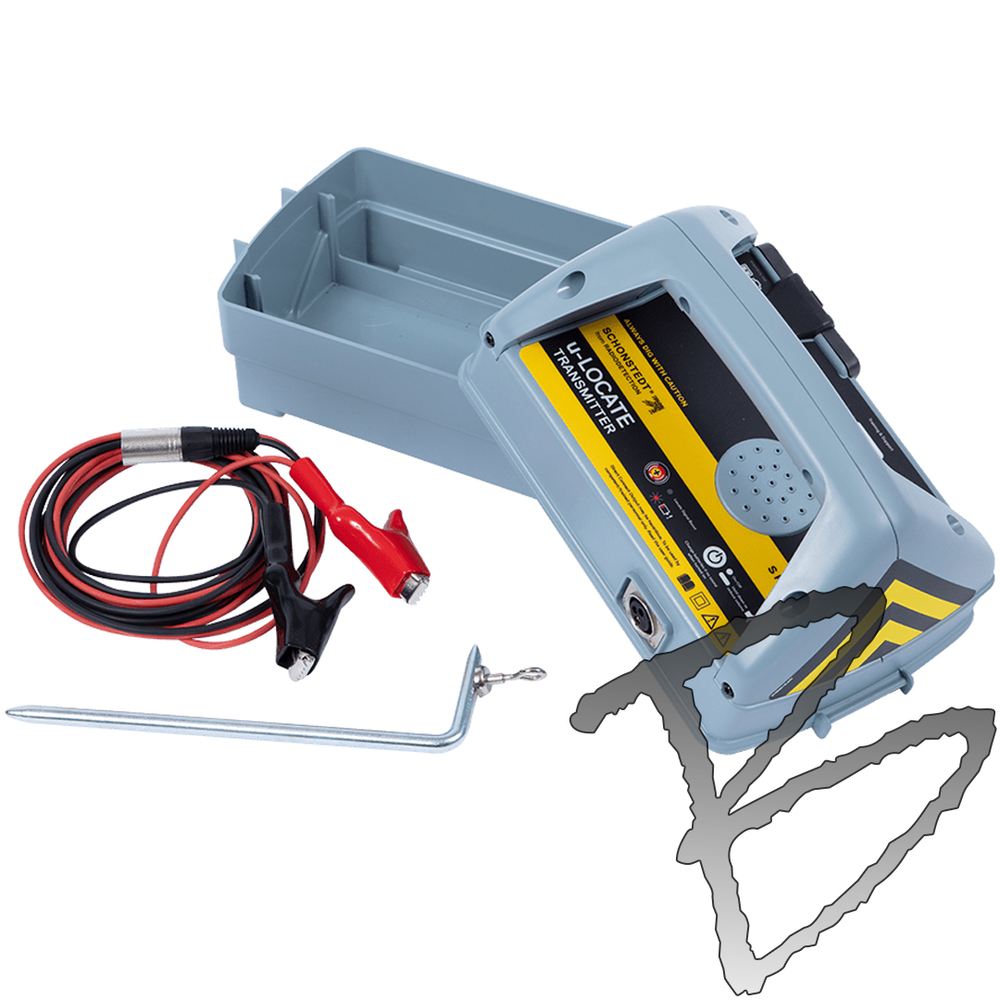

  2. Accessory storage tray - Conveniently store accessories, including the supplied magnet, earth stake, and direct connection leads.
  3. u-LOCATE Transmitter Features

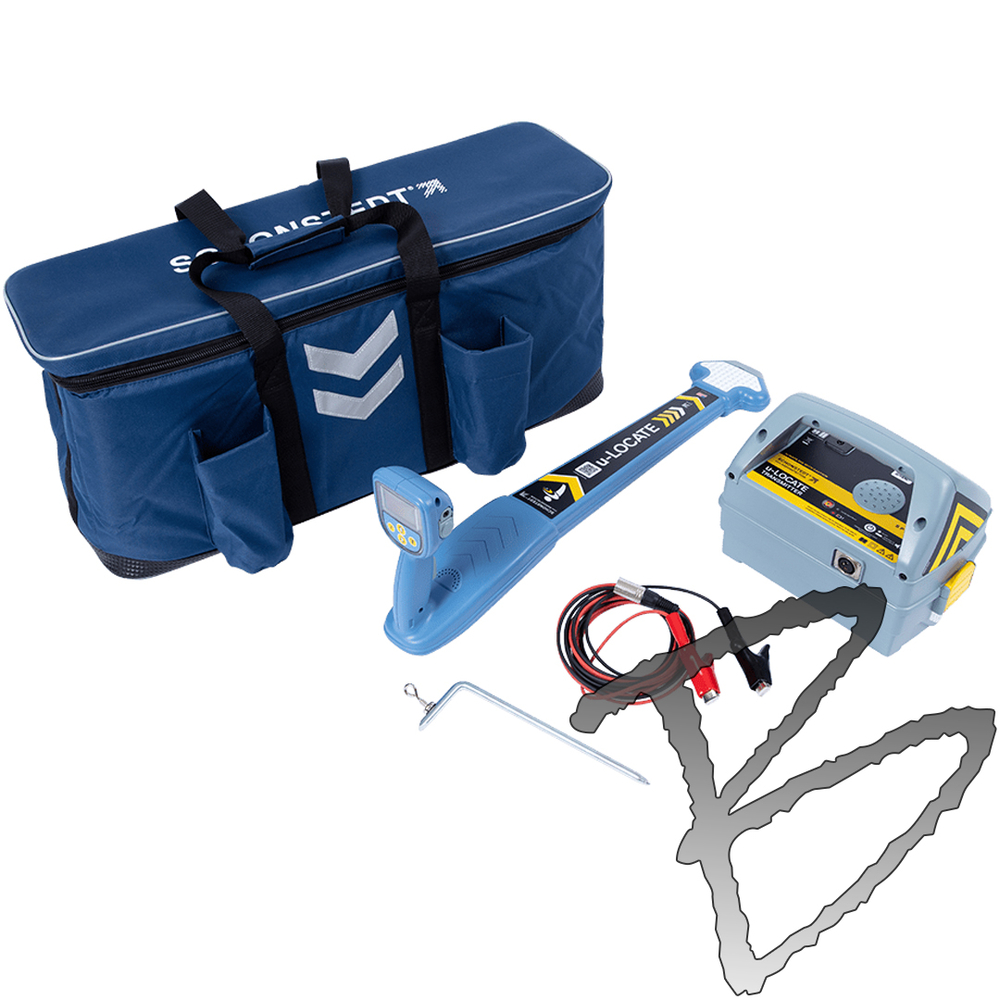

Standard Equipment
  • u-LOCATE Receiver with batteries
  • u-LOCATE Transmitter with batteries
  • Conductive Clips

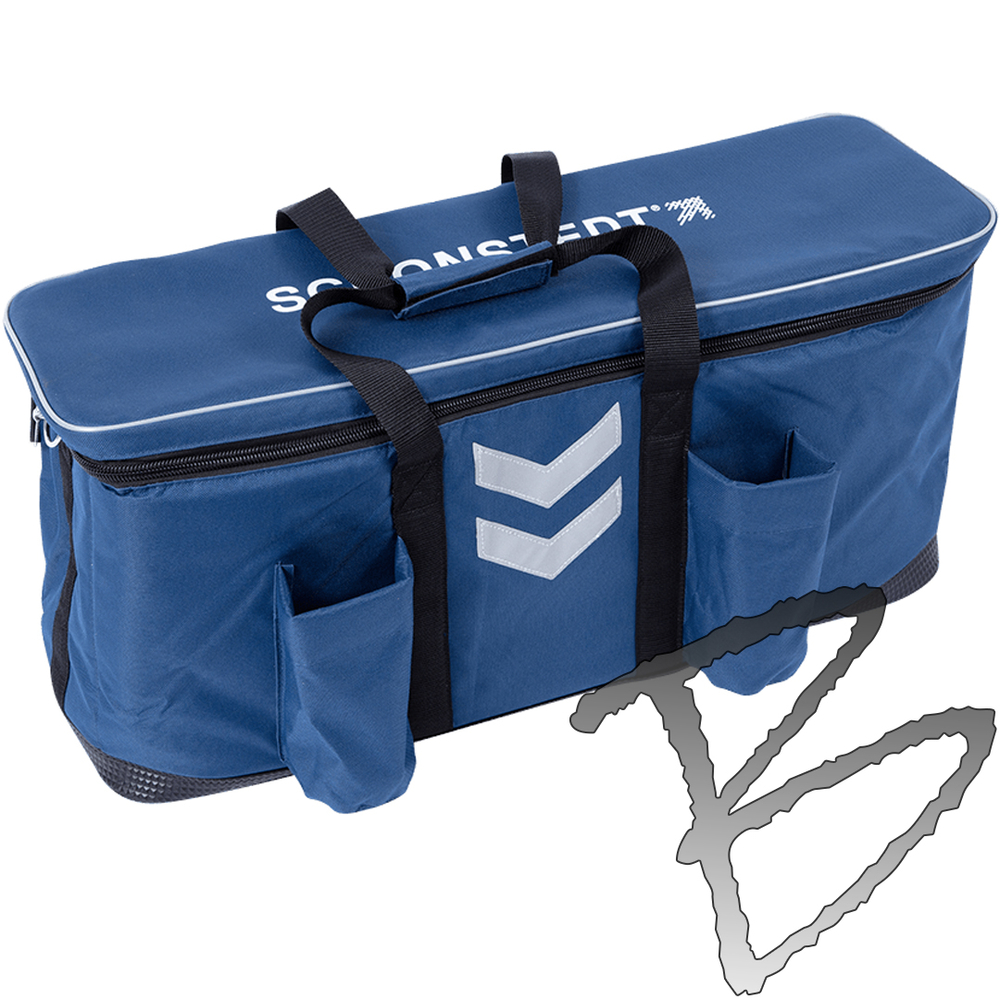

  • Soft Carrying Case
  • Ground Stake & Magnet
  • Welcome Placard to download the manual, register unit, watch training videos

u-Locate Brochure

u-LOCATE Locator Specifications

u-LOCATEu-LOCATE+
6 x AA Receiver
20 hours
10-1500Hz ( determined by signal strength )
0-70 dB SPL (volume controlled)
Weatherproof to NEMA3S and IP65
ABS Plastic
-10 to + 50°C (14 to 122°F)
2.4 lbs (1.1 Kg)
1 year (with an option to extend to 3 years at the point of purchase)
25.6” x 3.9” x 8.7” (65.1cm x 9.9cm x 22.1cm)

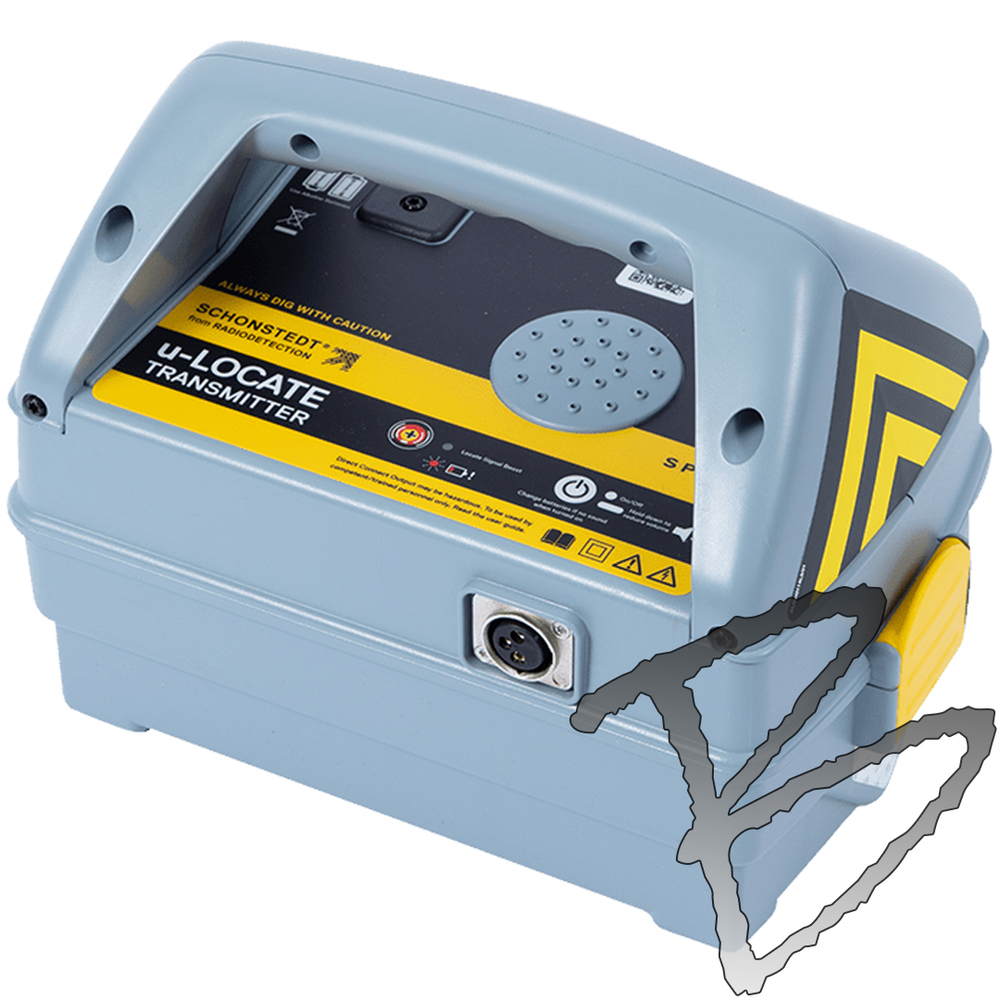

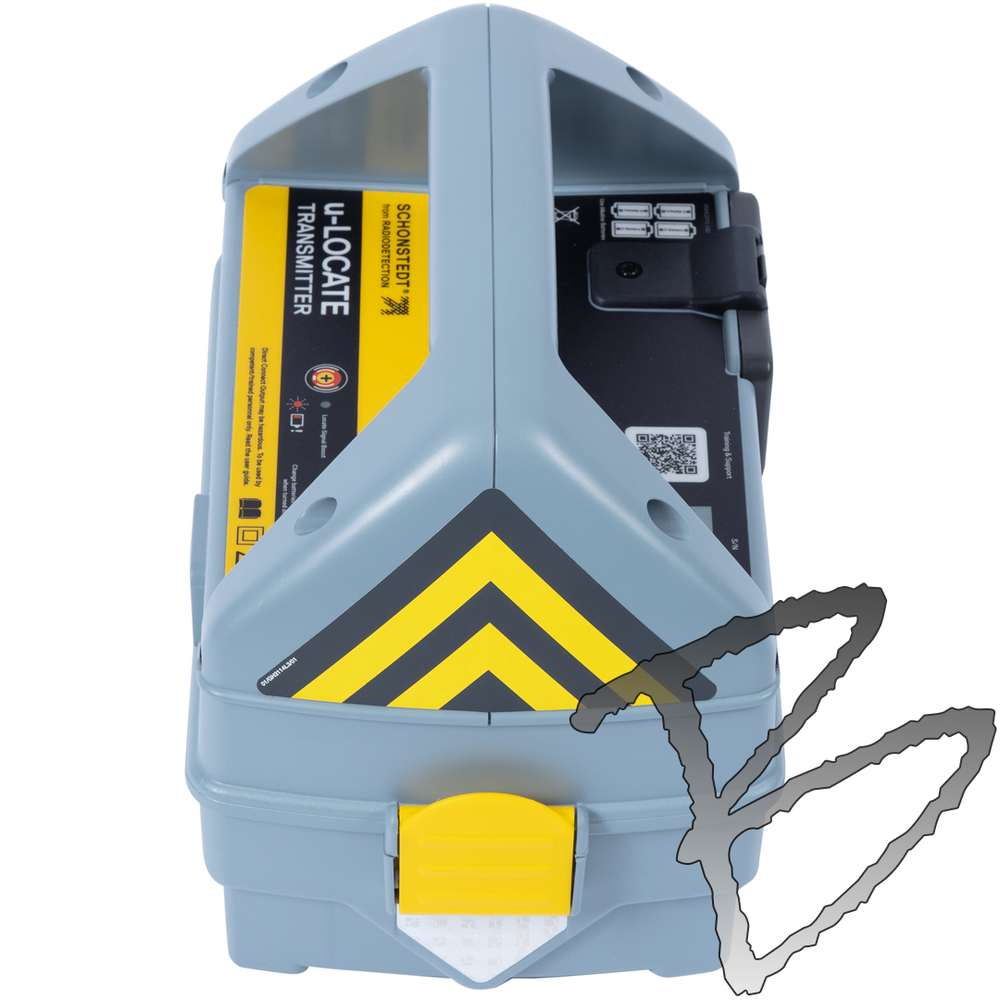

u-LOCATE Transmitter Specifications

Operating frequencies33 kHz and 82 kHz
Operating Modes:Direct Connect, Inductive frequencies
Direct Connect 33 kHz and 82 kHz
Inductive, 82 kHz only
Accessory Connection, 33 kHz and 82 kHz
Max. Output Power: (Direct Connect mode,
@ 1000 Ω load)
1W (boost)
Max. Output Voltage:23v RMS into Open Circuit
Max.Output Current:66mA into Short Circuit
Battery Type:4 x D (LR20) cell or equivalent
Battery Life:DC mode 15/40 hours (Boost v standard) Induction
mode 9/28 hours (Boost v standard)
Accessory connectiona) 3 Pin XLR Jack Output:
Inductive clamp
Direct Connect Leads
Dimensions:10.8” (17cm) x 6.7” (27.5cm) x 7.8” (20cm)
Weight:5.95 lbs. (2.75 kg)
Operating Temp.:-4°F to 122°F (-10°C to 50°C)
Water and Dust ResistanceRated IP54
