Rothbucher Laser Scanner Target, w/ Swivel and Tilt function, Magnetic, Box of 2
Item#'s RSL420M

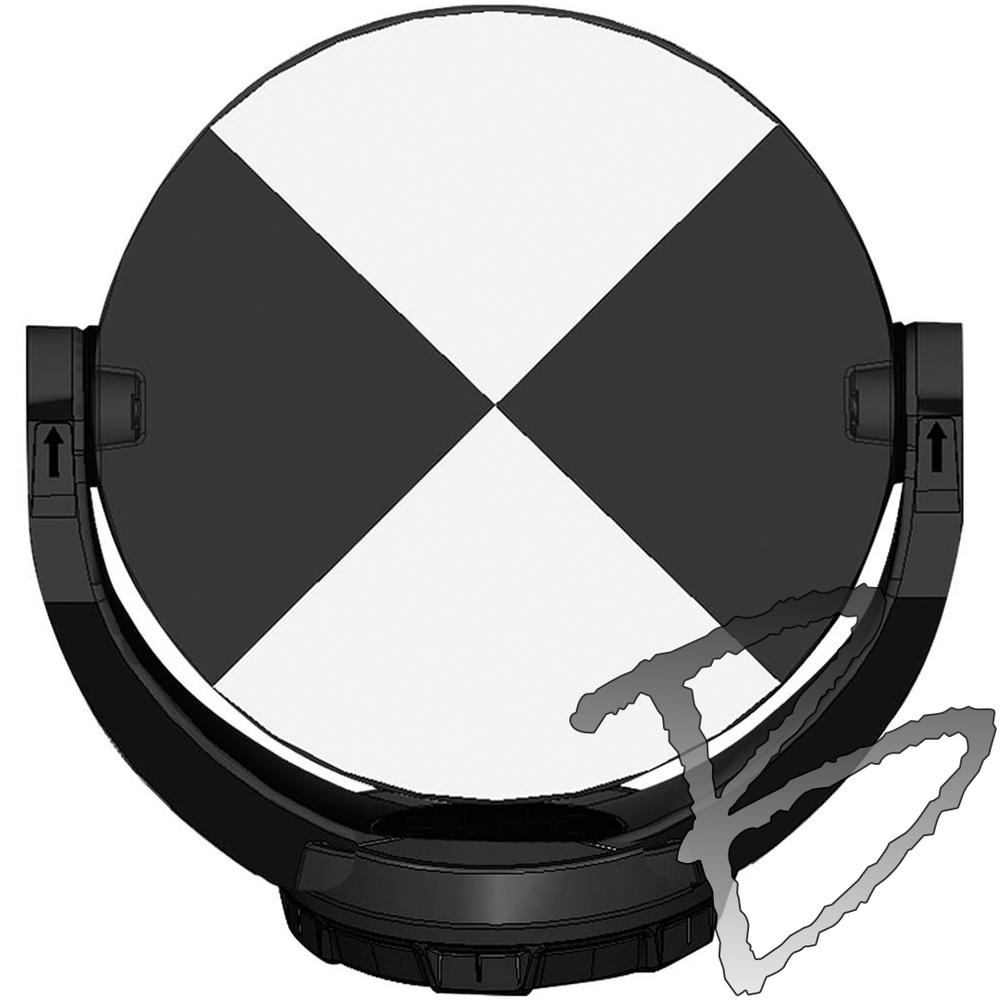

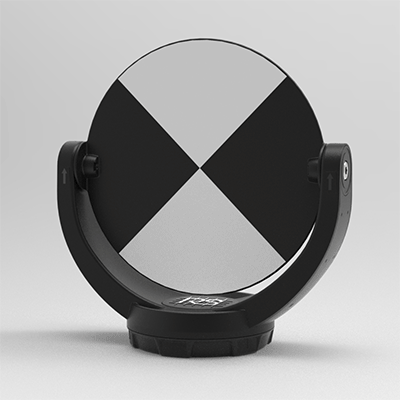

Laser scanner target with special magnetic base, w/ swivel and tilt function
Ball bearing joints allow the laser scanner target to be aligned
smoothly in any direction while always remaining precisely on axis and
in position.
The target can be used as a scanner or drone target
Article RSL420M – printed on one side with offset 0
Fixed points for linking several viewpoints
Assignment of spatial reference information to a geodata set
Suitable for indoor and outdoor use
Available in Red (call 877-844-3101 to special order Grey)

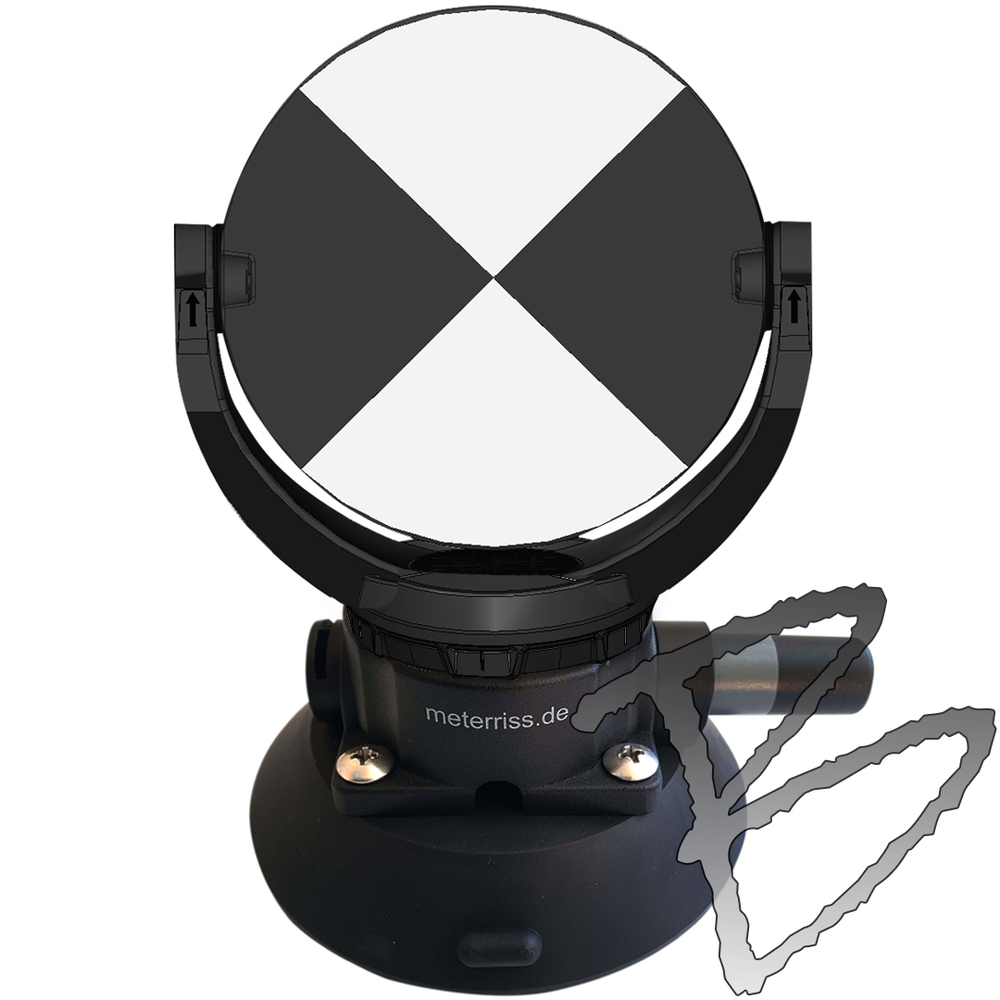

Optional Suction Cup (RSSV-X90,) sold Seperately Here - Enables the use
of the laser scanner target on any smooth surface such as glass or
smooth furniture fronts without drilling or gluing!
Priced per Box of 2, Sold per Box of 2
Magnetic base:
Special magnetic base with 11 magnets for all metallic surfaces and other applications
With recess for use in conjunction with RSFP-X90 fixed points
For use in conjunction with RSFP-X90-1, RSFP-X902 and RSFP-X90-3 adapters (all sold seperately, Call 877-844-3101 to order:)
This allows the laser scanner target to be placed on any standard tripod or trivet.
This allows the laser scanner target to be placed exactly over an RS Mini Prism.
The 100mm tilt axis height corresponds to common
prisms so that the XYZ coordinates can also be determined easily and
precisely using a total station.
If necessary Rothbucher also offer a
combination of magnetic base, adapter and prism with a tilt axis height
of 100 mm (Call 877-844-3101 to order.)

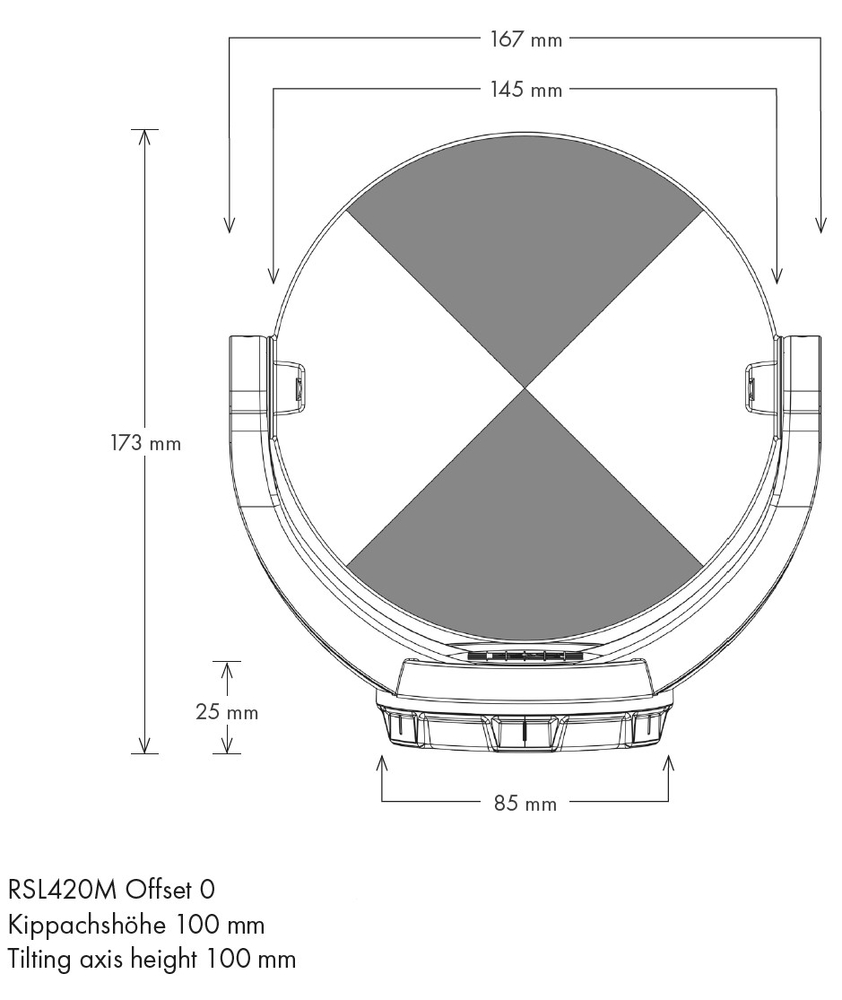

Technical data:
Diameter: Ř 145mm
Tilting axis height: 100 mm
Weight: 500 g
Part# RSL420M is printed on ONLY one side
