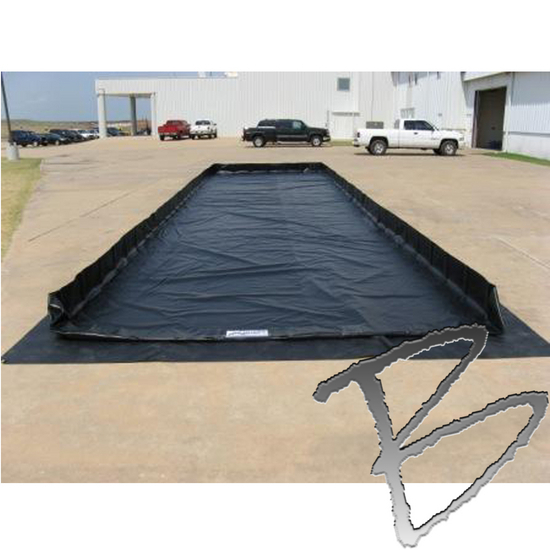

Husky Portable Containment Patriot Series Aluminum Angle Standard Berm
Husky Aluminum Angle Berms are easy to use with minimal set up time. The benefit to our angle berms is by having separate aluminum angle pieces the berm liner itself is lighter to handle. This means less manpower to handle the same size berm in a one piece construction. The angle brackets come in their own storage bag as well as the berm liner making transport much easier for a smaller crew. Two people can set up a 12' x 50' berm in less than 10 minutes. End wall tear down for ingress is one person less than one minute. Aluminum angles are heavy duty 6061-T6 aircraft quality aluminum Sidewall pockets are approx. every 24" apart or less to accept the angles Our angle berms are tested and guaranteed Material Options: EXLON® 22oz PVC (Grey Water) or XR-5 8130 30oz (Chemicals, Grey water, Black water) Customizable Berms:
Wall sizes up to 24" All types of materials available: PVCs from 22 oz. - 30 oz., All XR materials, & Urethanes Tread pads available Ground covers available Field repair kits available In house repairs Can be manufactured to meet any size specifications or requirements Call 877-844-3101 or use the Contact Us page to start the customize process. Standard Dimensions:
Size
Folded Dimensions
Berm Weight
Angle Brackets Weight
Shipping Dims
Shipping Weights
10' x 10' x 1'
22" x 28" x 6"
37 lbs.
39 lbs.
25" x 9" x 35"
81 lbs.
12' x 12' x 1'
24" x 30" x 8"
50 lbs.
46 lbs.
40" x 48" x 11"
131 lbs.
12' x 26' x 1'
30" x 34" x 9"
95 lbs.
71 lbs.
40" x 48" x 15"
201 lbs.
12' x 36' x 1'
34" x 36" x 12"
124 lbs.
89 lbs.
40" x 48" x 18"
248 lbs.
12' x 50' x 1'
40" x 40" x 18"
173 lbs.
113 lbs.
40" x 48" x 22"
321 lbs.
14' x 54' x 1'
40" x 46" x 24"
210 lbs.
124 lbs.
40" x 48" x 30"
369 lbs.
15' x 50' x 1'
40" x 46" x 24"
210 lbs.
117 lbs.
40" x 48" x 30"
369 lbs.
15' x 66' x 1'
40" x 47" x 36"
268 lbs.
149 lbs.
40" x 48" x 42"
452 lbs.
See all
portable tanks .
