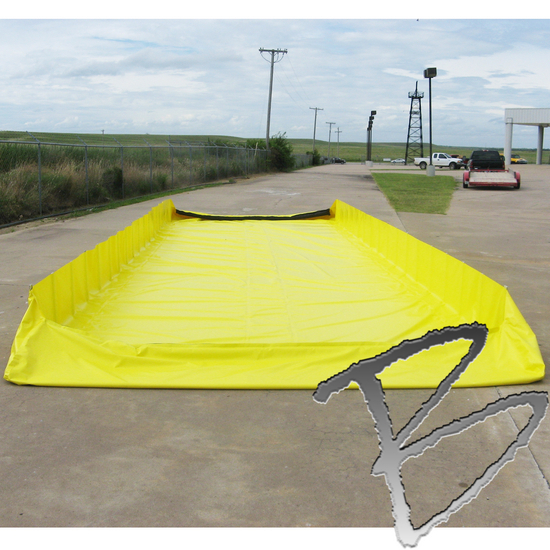

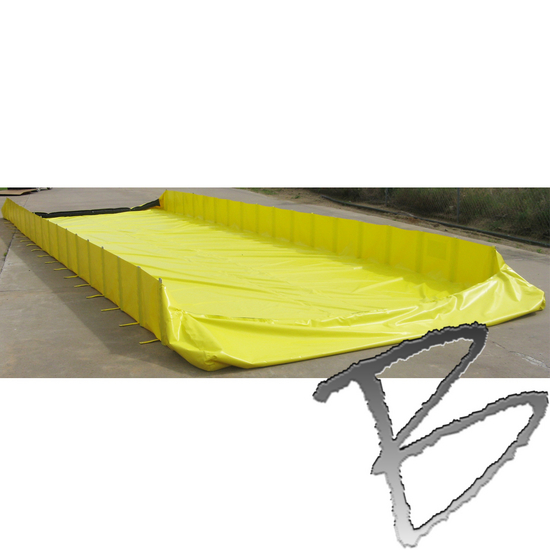

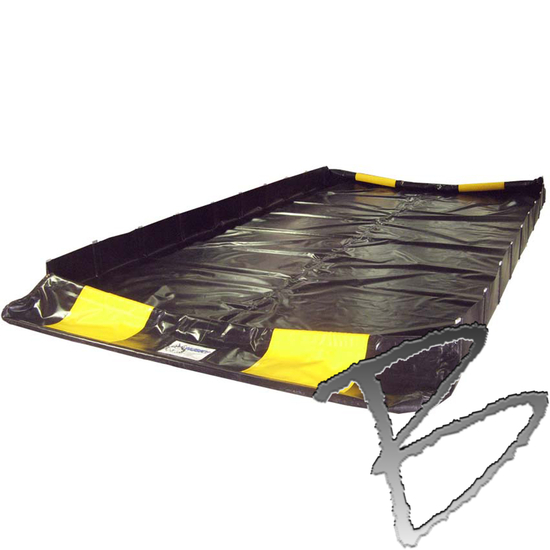

Husky Portable Containment Freedom Series IV Aluminum Angle Drive Thru Berm
Series IV drive through berms are designed with aluminum angle side walls and self rising foam end walls. Set up time is quick. Side walls have pockets every 24" or less to accept angle brackets. End walls can be driven over repeatedly with no damage. No leaving your vehicle to drive in or out. This drive through berm takes up less space than any drive through berm on the market. 6061-T6 Aircraft-quality aluminum used for the side supports Easy set-up Materials: EXLON® 22oz (Grey Water) or XR-5 8130 30oz. (Chemicals, Black or Gray Water) Customizable Berms
All types of materials available: PVCs from 22 oz. - 30 oz., All XR materials, & Urethanes Tread pads available Ground covers available Field repair kits available In house repairs Can be manufactured to meet any size specifications or requirements Call 877-844-3101 or use the Contact Us page to start the customize process. Standard Dimensions:
Size
Folded Dimensions
Berm Weight
Angle Brackets Weight
Shipping Dims
Shipping Weights
10' x 10' x 1'
22" x 28" x 8"
43 lbs.
18 lbs.
25" x 22" x 35"
66 lbs.
12' x 12' x 1'
24" x 30" x 10"
56 lbs.
22 lbs.
40" x 48" x 15"
113 lbs.
12' x 26' x 1'
30" x 34" x 12"
100 lbs.
46 lbs.
40" x 48" x 17"
181 lbs.
12' x 36' x 1'
34" x 36" x 14"
131 lbs.
64 lbs.
40" x 48" x 19"
230 lbs.
12' x 50' x 1'
40" x 40" x 22"
175 lbs.
89 lbs.
40" x 48" x 27"
299 lbs.
14' x 54' x 1'
40" x 46" x 28"
214 lbs.
96 lbs.
40" x 48" x 32"
345 lbs.
15' x 50' x 1'
40" x 46" x 28"
214 lbs.
96 lbs.
40" x 48" x 32"
369 lbs.
15' x 66' x 1'
40" x 47" x 38"
272 lbs.
117 lbs.
40" x 48" x 43"
424 lbs.
See all
portable tanks .
