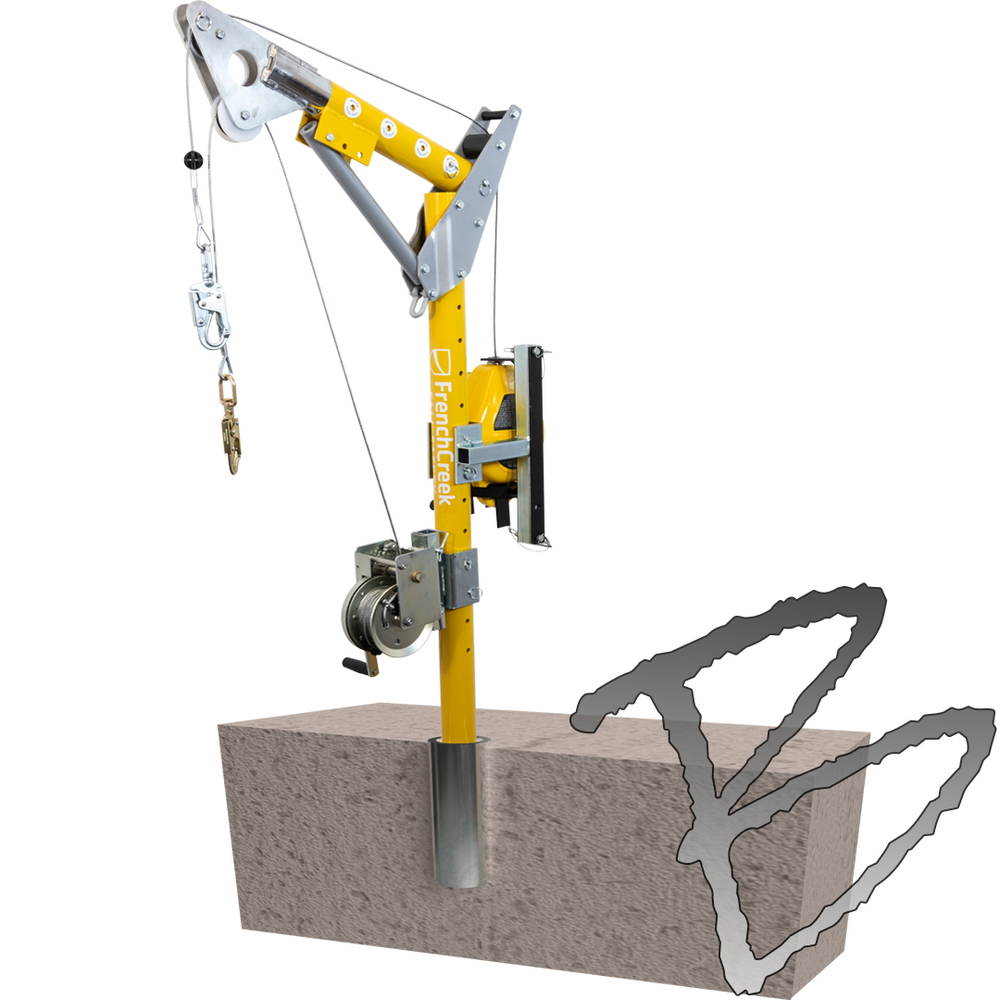

• FrenchCreek’s PD5 Core Mount Davit System is designed to raise, lower, and suspend workers performing routine work duties and to facilitate rescues in confined space applications such as vaults, manholes, and pump stations.
• The variable offset mast is equipped with FrenchCreek’s mechanical work-winch and rescue SRL
• The lightweight aluminum alloy design and quick-connect/release pins, allow for easy setup, dismantle, and transport.

PD5 Davit System Core Mount Sleeve Base is Designed for slip-in installation

• Core-mount davit sleeve Fits 4” (0.10m) diameter core hole in concrete or in an existing steel structure
• Ideally suited for recurrent access locations where mast can be easily moved.
• 9″ deep sleeve with PVC insert
• Offers 360° mast rotation
• Davit mast adjusts from 12″-30″ offset reach
• PD5 Core Mount Complete Unit consists of Part numbers PD5, PD1, PD3, PD4, MW50G and R50G.
• (All 6 Parts of the complete unit are automatically selected upon ordering.)
• Lightweight powder-coated aluminum and stainless steel.
• Allows 360° mast rotation
• Davit meets OSHA 1926.502 and 1910.66 regulations
• Item weight: 114 lbs.
• Quickship
• Free Ground Shipping

Features:

• System Includes: Part Number PD5, PD2, PD3, PD4, MW50G Winch, R50G rescue SRL
• Core Mount Sleeve Base- 9” deep sleeve
• Rescue SRL: R50G 3-way rescue SRL
• Lifeline Length & Material: 50' Galvanized Steel
• Winch: MW50G Work Winch
• Hardware Material: Powder coated aluminum, plated
• Boom: Adjusts from 12″-30″ offset reach
• Installation: recurrent access locations where mast can be easily moved.

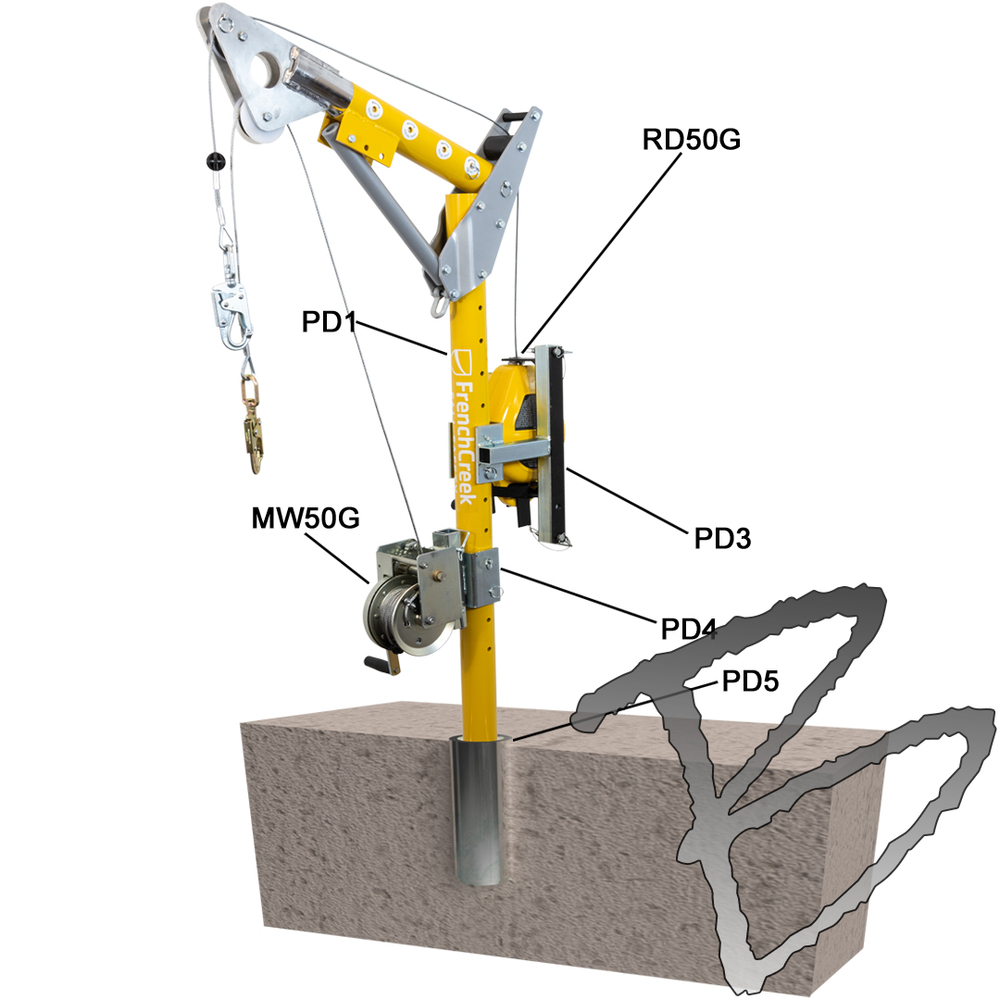

Davit System Component Details:

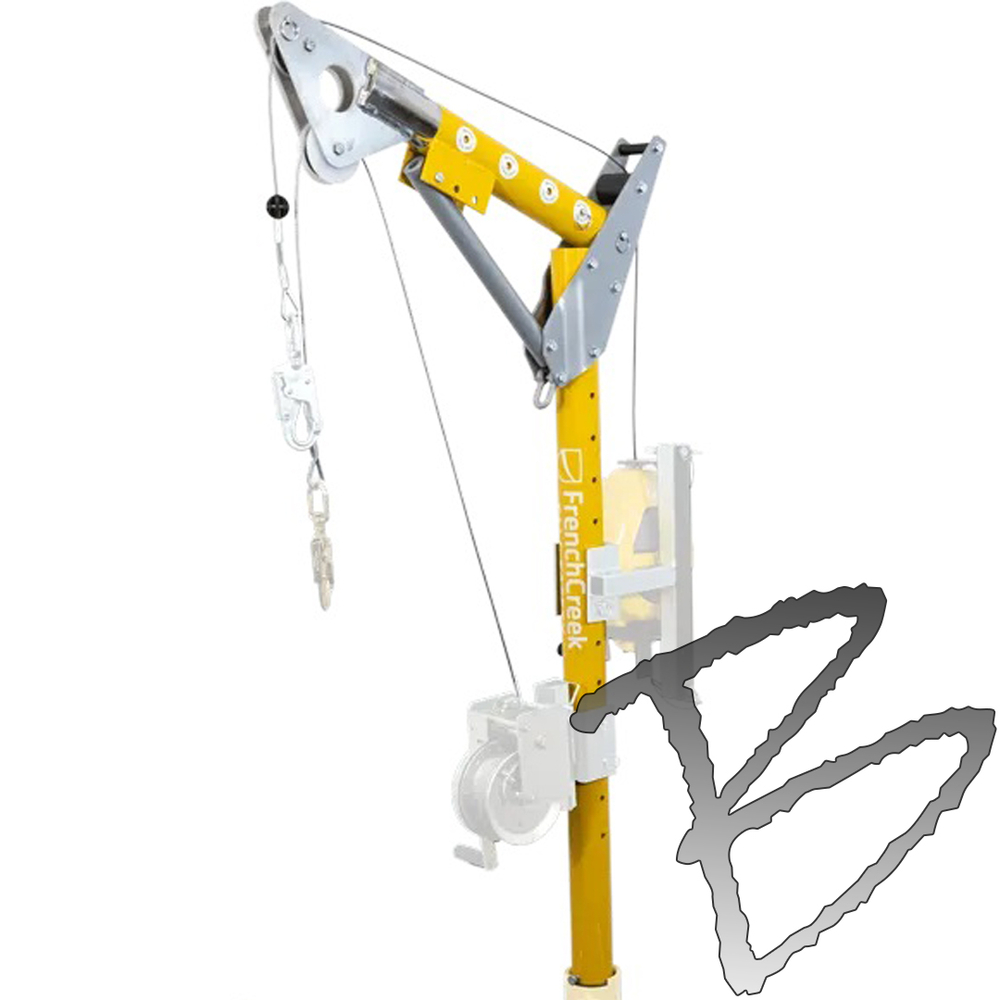

PD1 - Davit Mast Assembly

• Telescoping adjustability from 12” to 30”
• Primary and secondary pulleys for multiple devices
• Attachment points for mechanical devices
• Swiveling design allows easy hole exit & rescue
• Lightweight powder coated aluminum & alloy steel
• Item weight 32.75 lbs.

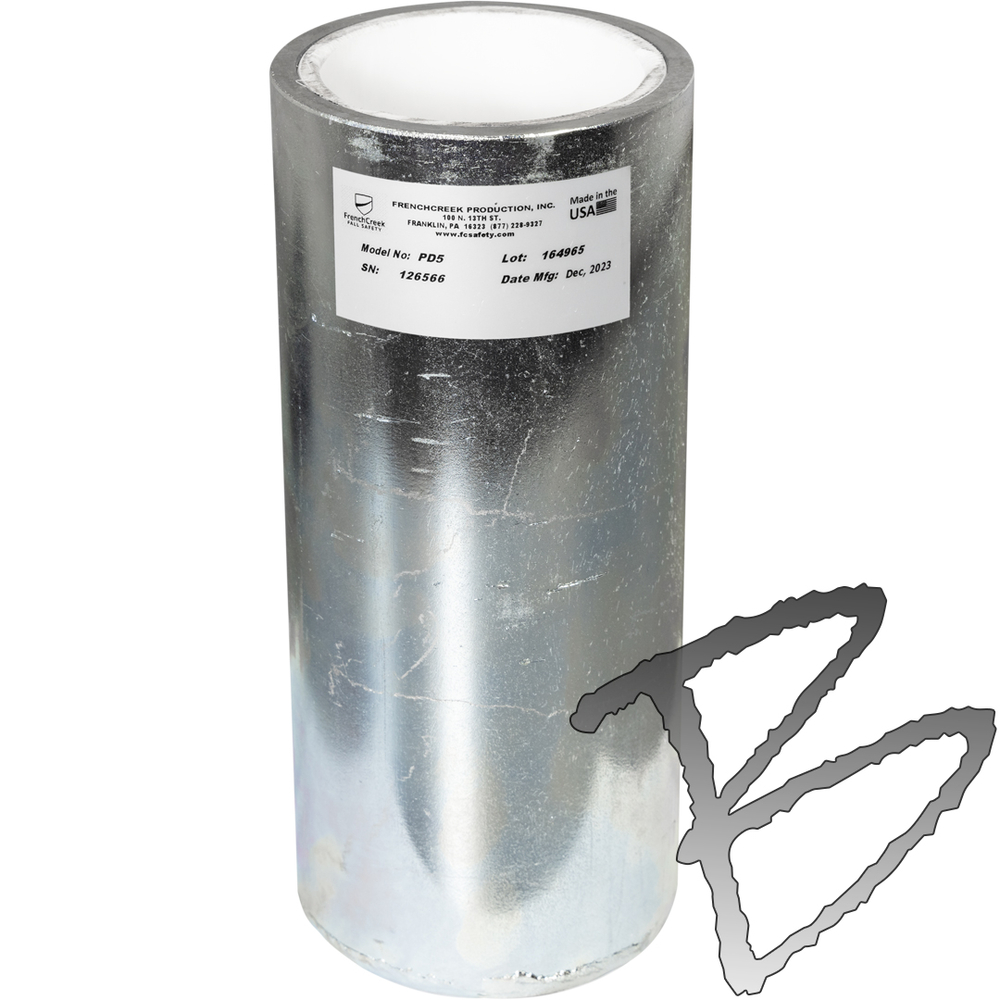

PD5 - Core Mount Sleeve Base

• Designed for slip-in installation
• sleeve fits 4” diameter core hole.
• Sleeve 9” deep with PVC insert.
• Allows for 360° rotation of PD1 Davit Mast Assembly.
• Item weight: 9.7 lbs.

PD3 - R50G Mounting Bracket

• Used to attach R50G Rescue SRL to PD1 Davit Mast Assembly.
• Attaches with locking pins.
• Material: plated alloy steel.
• Item weight: 7.2 lbs.

PD4  - MW50G Mounting Bracket

• Used to attach MW50G Work Winch to PD1 Davit Mast Assembly.
• Attaches with locking pins.
• Material: plated alloy steel.
• Item weight: 4.8 lbs.

MW50G - Material Work Winch

• Requires PD4 mounting bracket for Davit System (included)
• 50’ galvanized wire rope
• Friction braking system
• Stainless steel
• Rugged, steel frame drum
• Item weight: 35 lbs.

R50G - 3-Way Rescue SRL

• Requires PD3 mounting bracket for Davit System (Included)
• 50’ galvanized wire rope lifeline
• Dual internal inertia braking system
• Load indicating snaphook included
• Stainless steel
• Item weight: 25 lbs.
