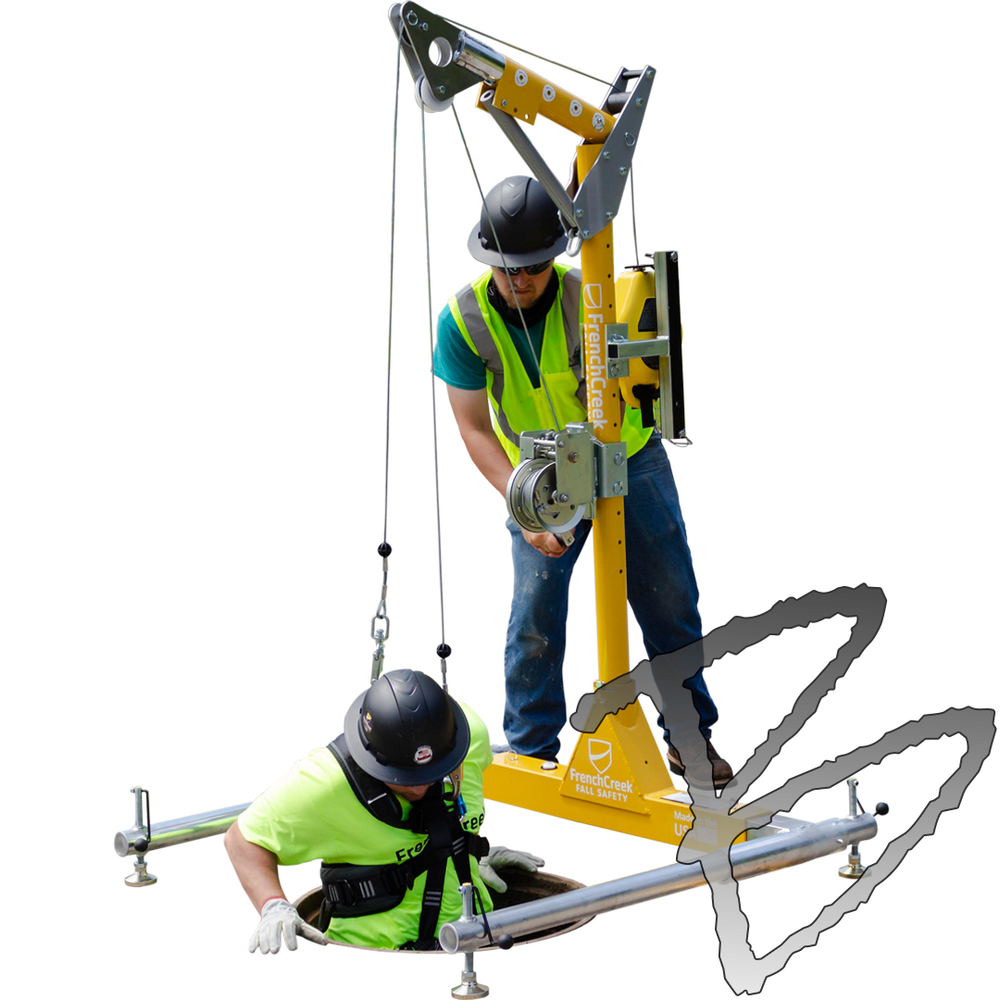

• FrenchCreek’s PD2 Portable Davit System is designed to raise, lower, and suspend workers performing routine work duties and to facilitate rescues in confined space applications such as vaults, manholes, and pump stations.
• The variable offset mast is equipped with FrenchCreek’s mechanical work-winch and rescue SRL
• The lightweight aluminum alloy design and quick-connect/release pins, allow for easy setup, dismantle, and transport.
• Davit base adjusts from 36″-60″: Fits a wide range of openings
• Davit mast adjusts from 12″-30″ offset reach
• The 3-piece base includes an integrated bullseye level and requires no tools

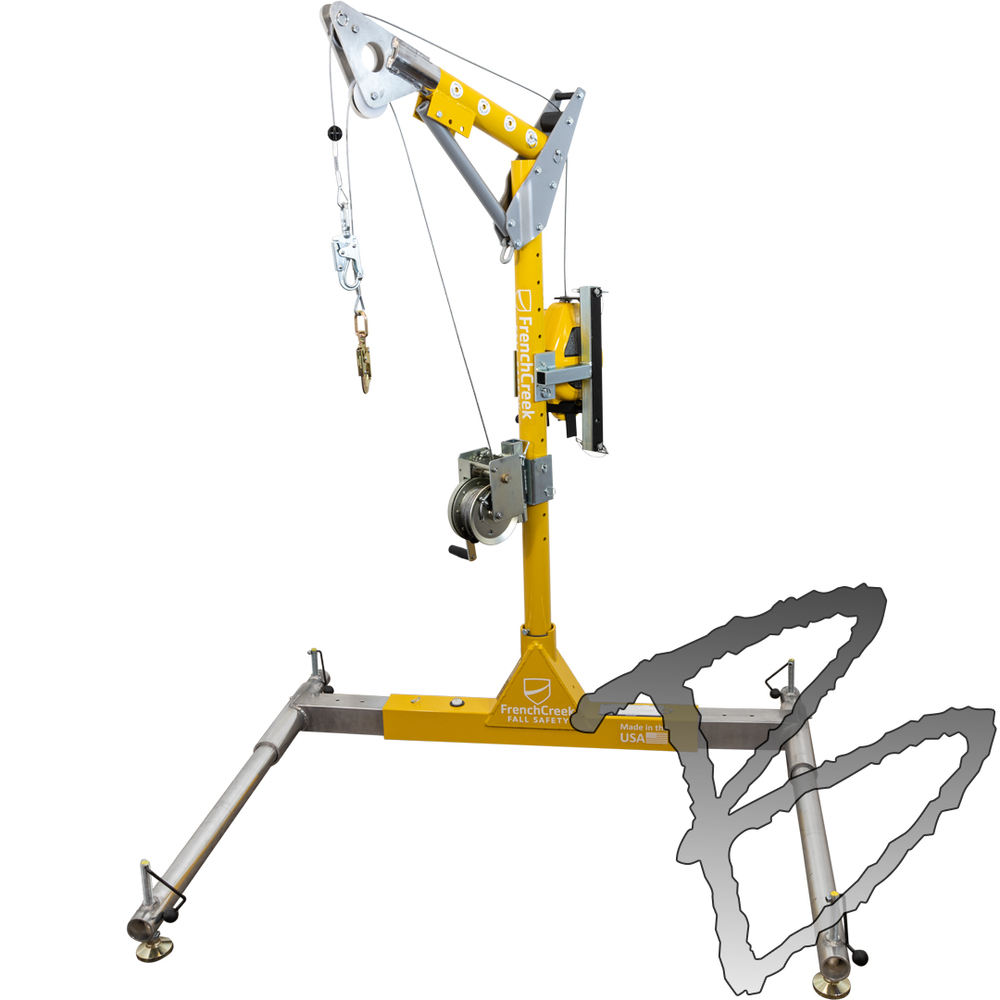

• FrenchCreek’s 4-piece portable davit system designed for confined space entry and exit.
• Complete Unit consists of Part numbers PD1, PD2, PD3, PD4, MW50G and R50G.
• (All 6 Parts of the complete unit are automatically selected upon ordering.)
• Lightweight powder-coated aluminum and stainless steel.
• Adjustable davit base, and offset davit mast.
• Davit meets OSHA 1926.502 and 1910.66 regulations
• Quickship
• Free Ground Shipping

Features:

• System Includes: Part Number PD1, PD2, PD3, PD4, MW50G Winch, R50G rescue SRL
• David System Base: 36″-60″: Fits a wide range of openings
• Rescue SRL: R50G 3-way rescue SRL
• Lifeline Length & Material: 50' Galvanized Steel
• Winch: MW50G Work Winch
• Feet: Tool free adjustable feet
• Boom: Adjusts from 12″-30″ offset reach
• Installation: Temporary

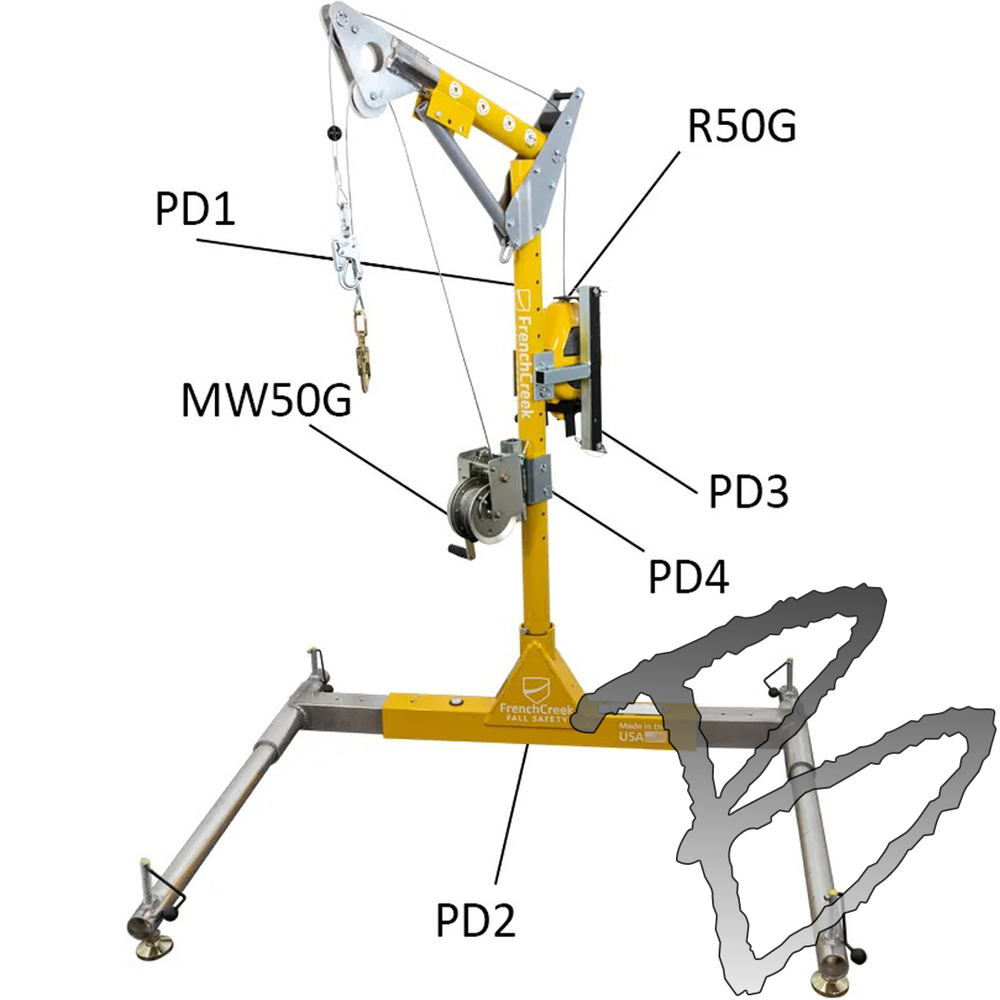

Davit System Component Details:

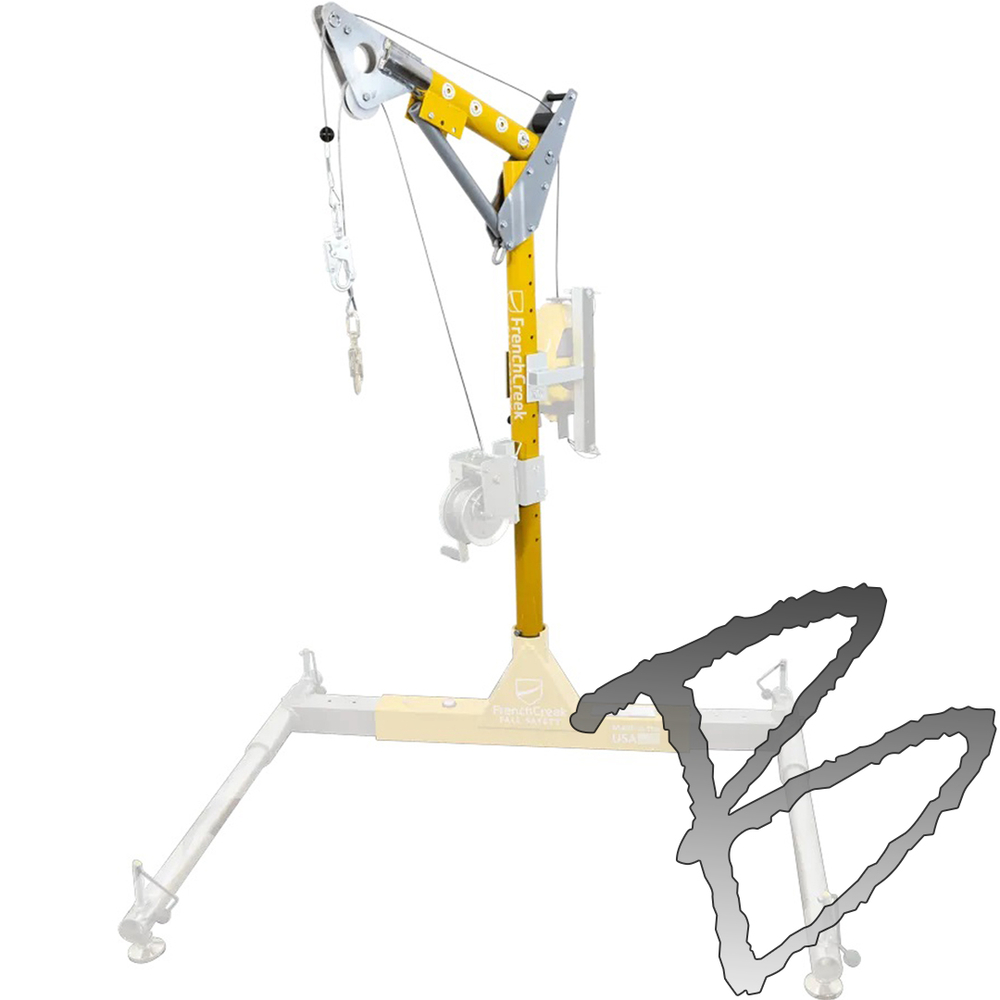

PD1 - Davit Mast Assembly

• Telescoping adjustability from 12” to 30”
• Primary and secondary pulleys for multiple devices
• Attachment points for mechanical devices
• Swiveling design allows easy hole exit & rescue
• Lightweight powder coated aluminum & alloy steel
• Item weight 32.75 lbs.

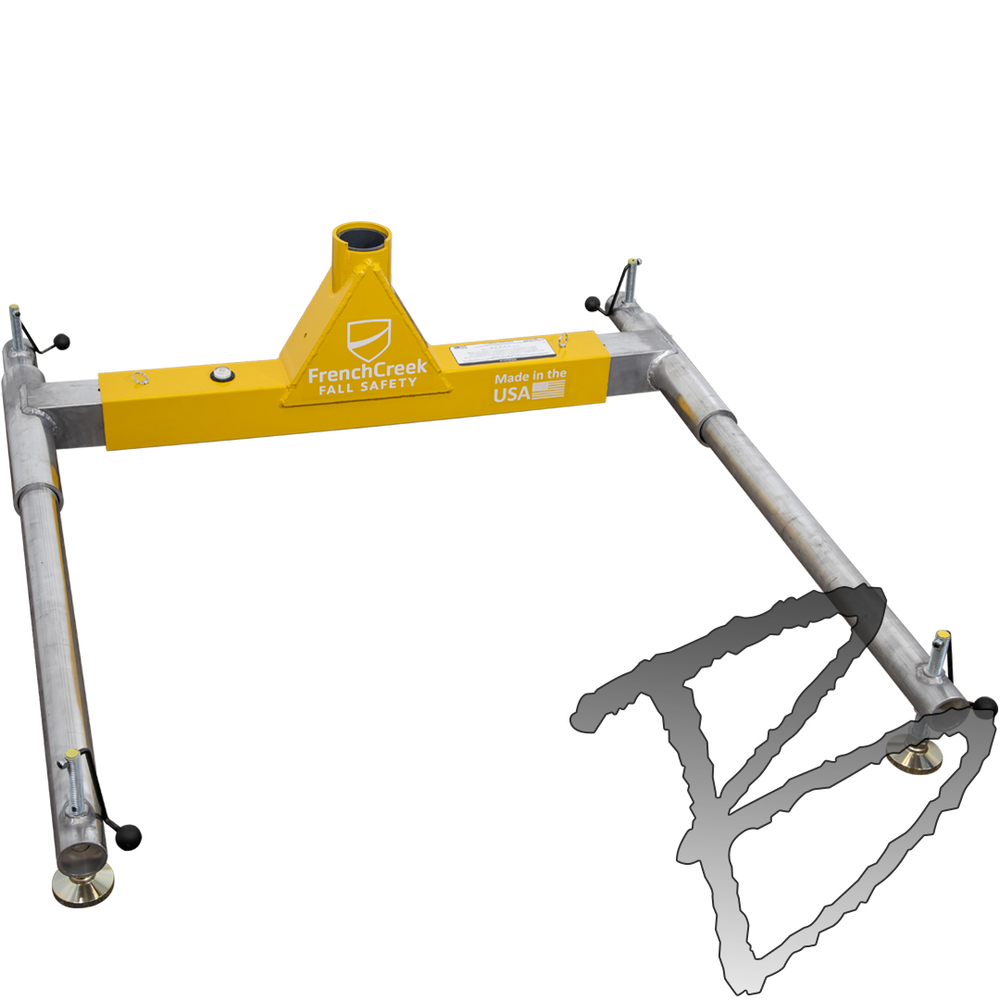

PD2 - Davit System Base

• Base width adjusts from 36”-60”
• Integrated bullseye level
• Tool-free height adjustment
• Compatible with davit mast assembly
• Lightweight powder coated aluminum & alloy steel
• Item weight 58 lbs.

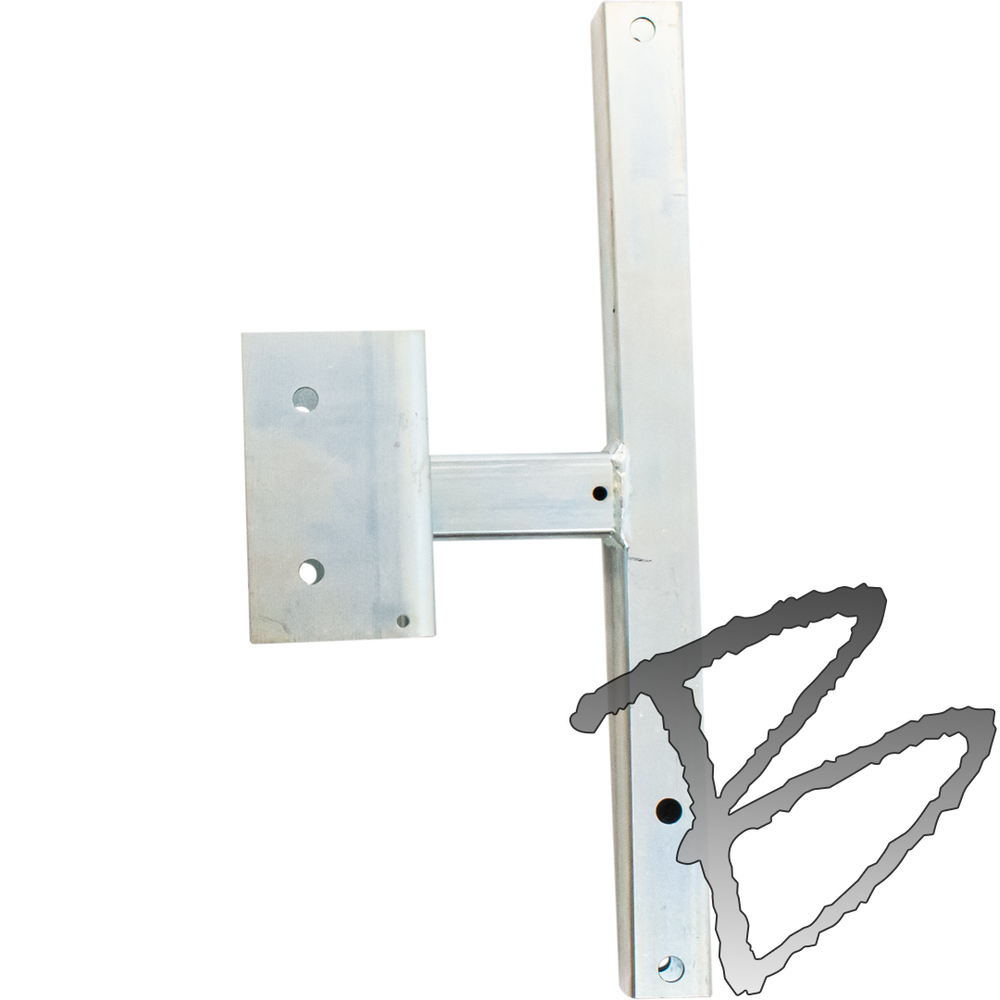

PD3 - R50G Mounting Bracket

• Used to attach R50G Rescue SRL to PD1 Davit Mast Assembly.
• Attaches with locking pins.
• Material: plated alloy steel.
• Item weight: 7.2 lbs.

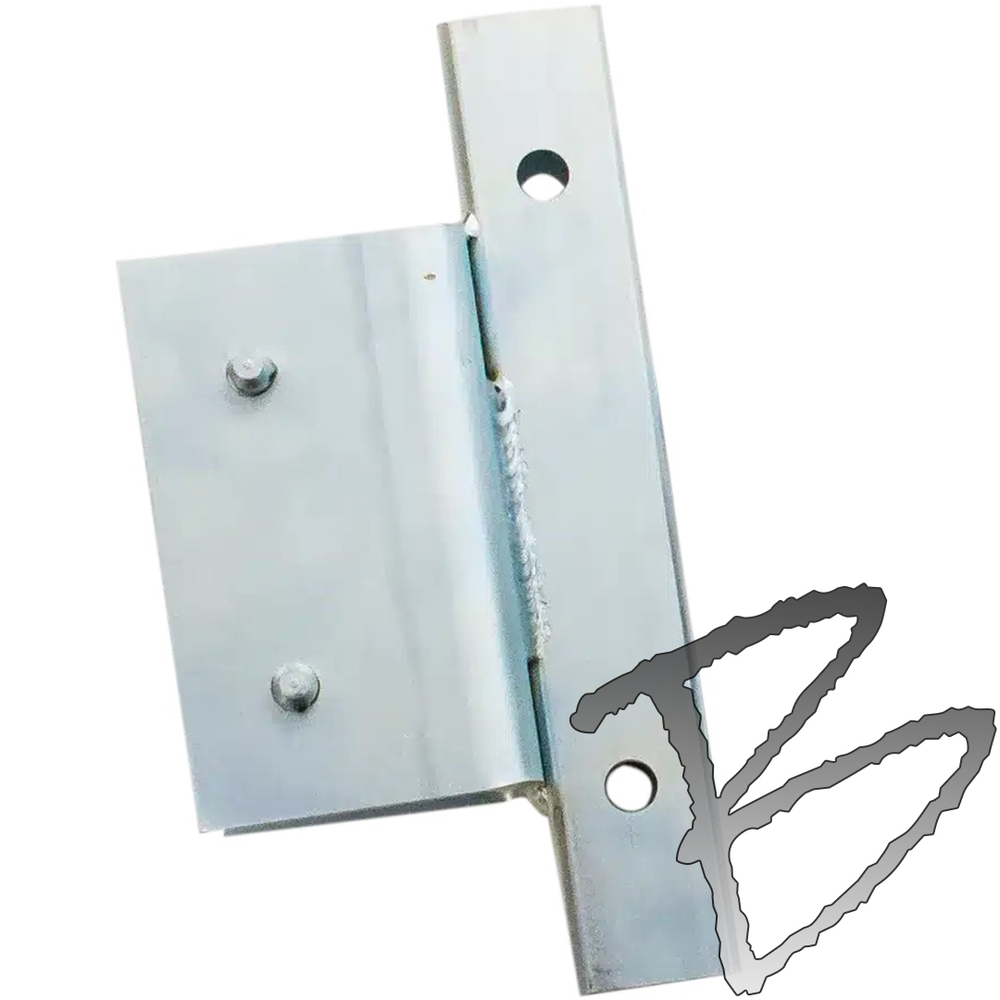

PD4  - MW50G Mounting Bracket

• Used to attach MW50G Work Winch to PD1 Davit Mast Assembly.
• Attaches with locking pins.
• Material: plated alloy steel.
• Item weight: 4.8 lbs.

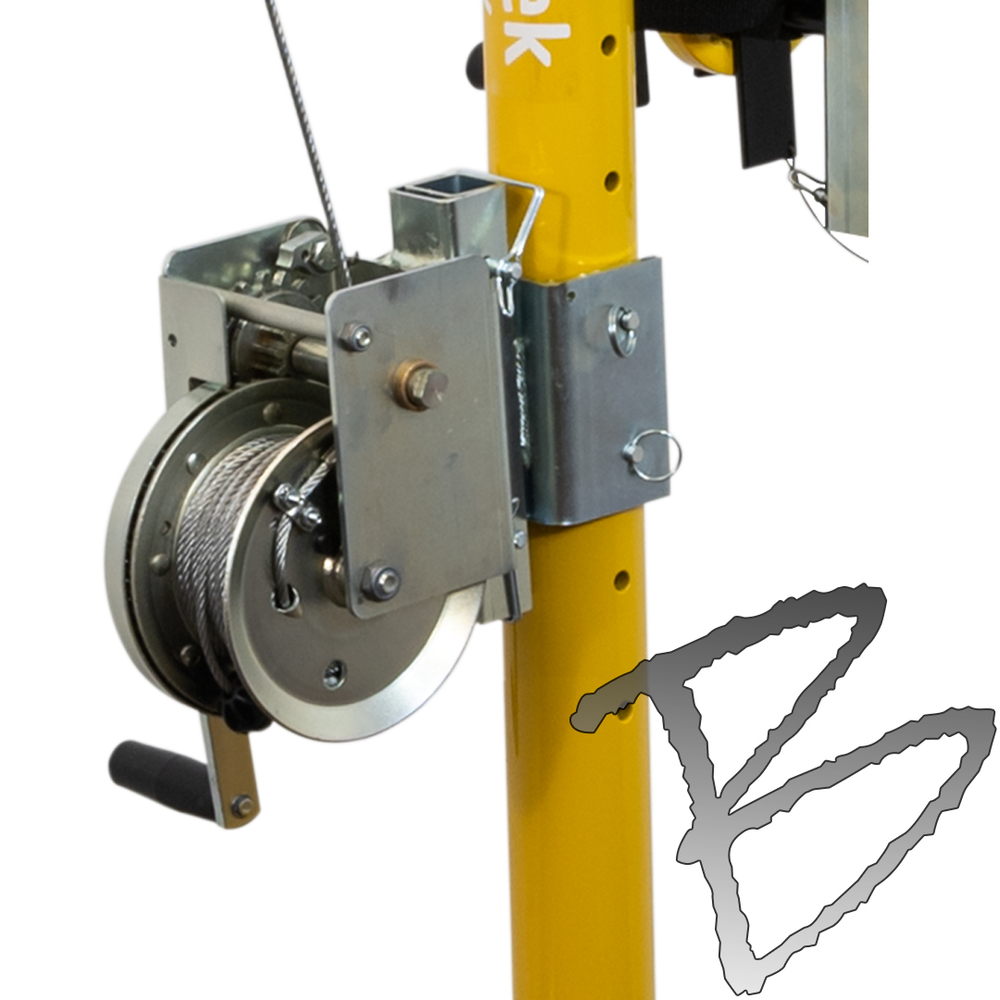

MW50G - Material Work Winch

• Requires PD4 mounting bracket for Davit System (included)
• 50’ galvanized wire rope
• Friction braking system
• Stainless steel
• Rugged, steel frame drum
• Item weight: 35 lbs.

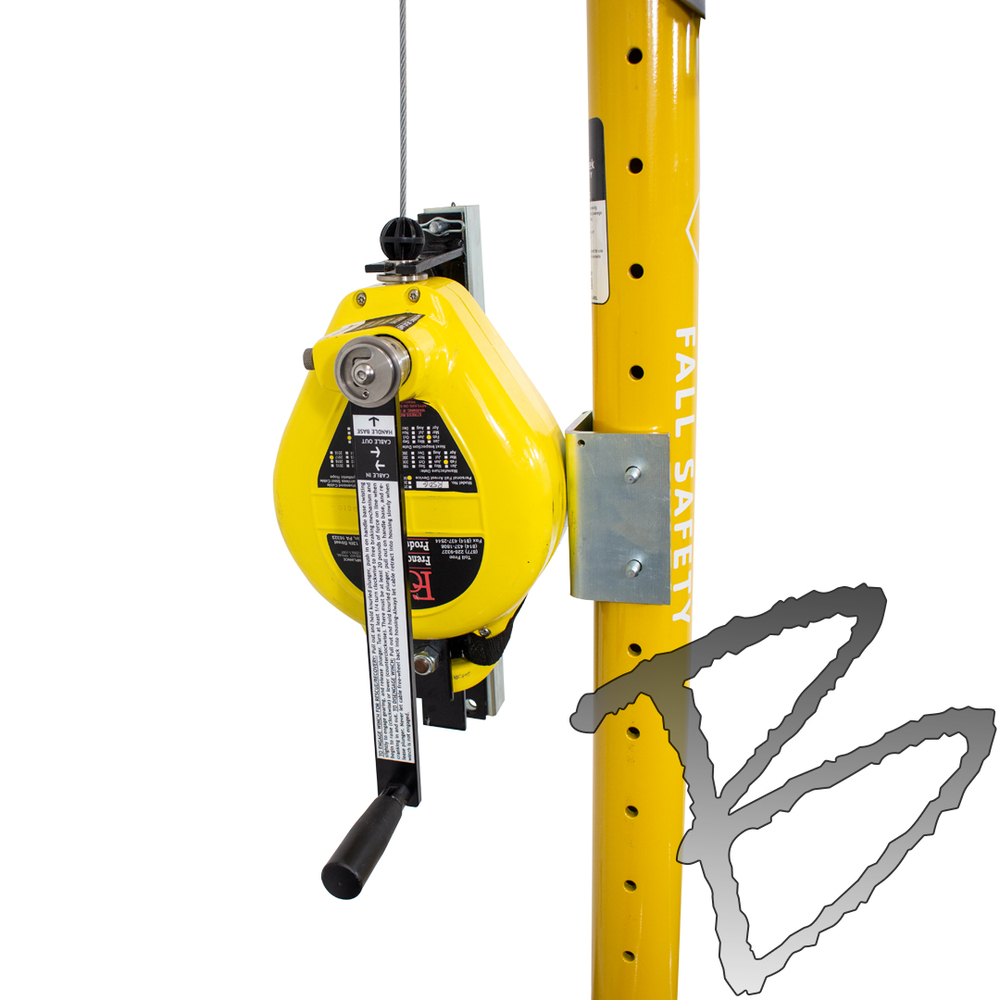

R50G - 3-Way Rescue SRL

• Requires PD3 mounting bracket for Davit System (Included)
• 50’ galvanized wire rope lifeline
• Dual internal inertia braking system
• Load indicating snaphook included
• Stainless steel
• Item weight: 25 lbs.
