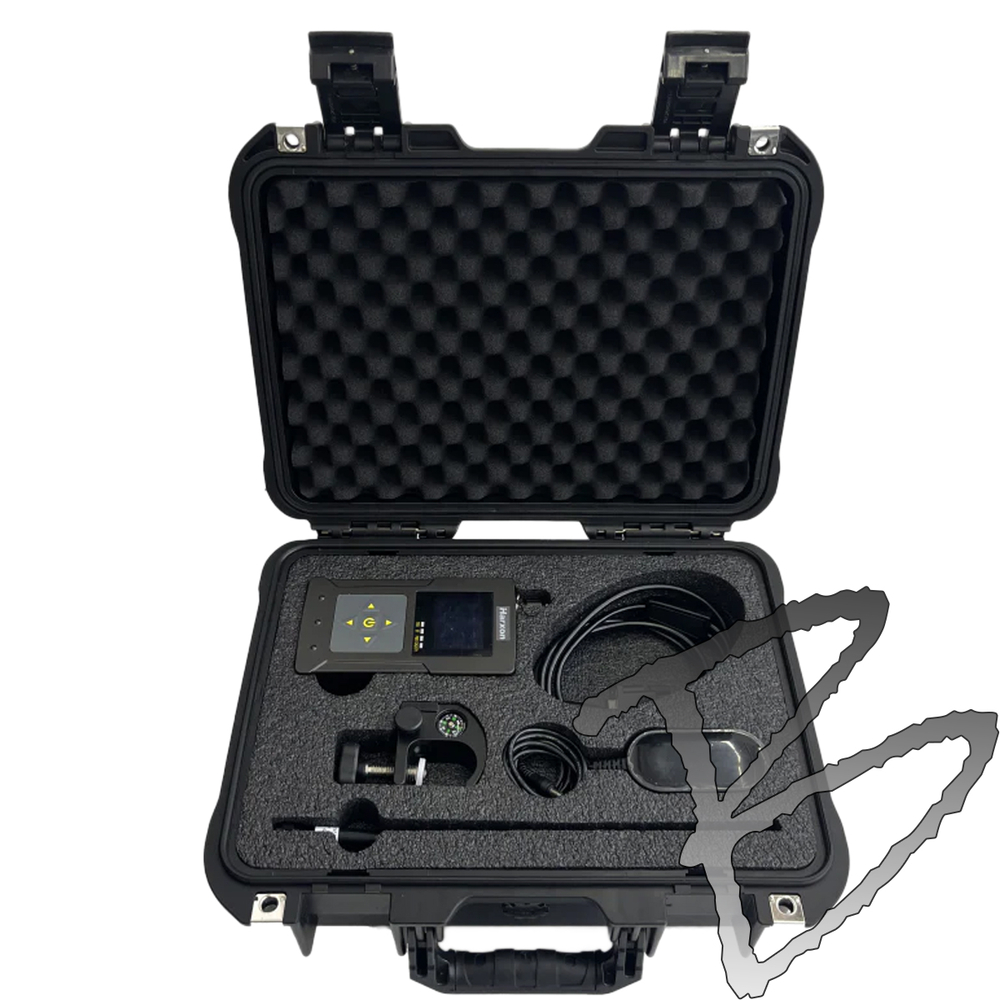

The Flex radio kit provides a UHF radio link used for communicating corrections from a Bad Elf Flex operating as a fixed base station to one or more Bad Elf Flex units operating as rovers.

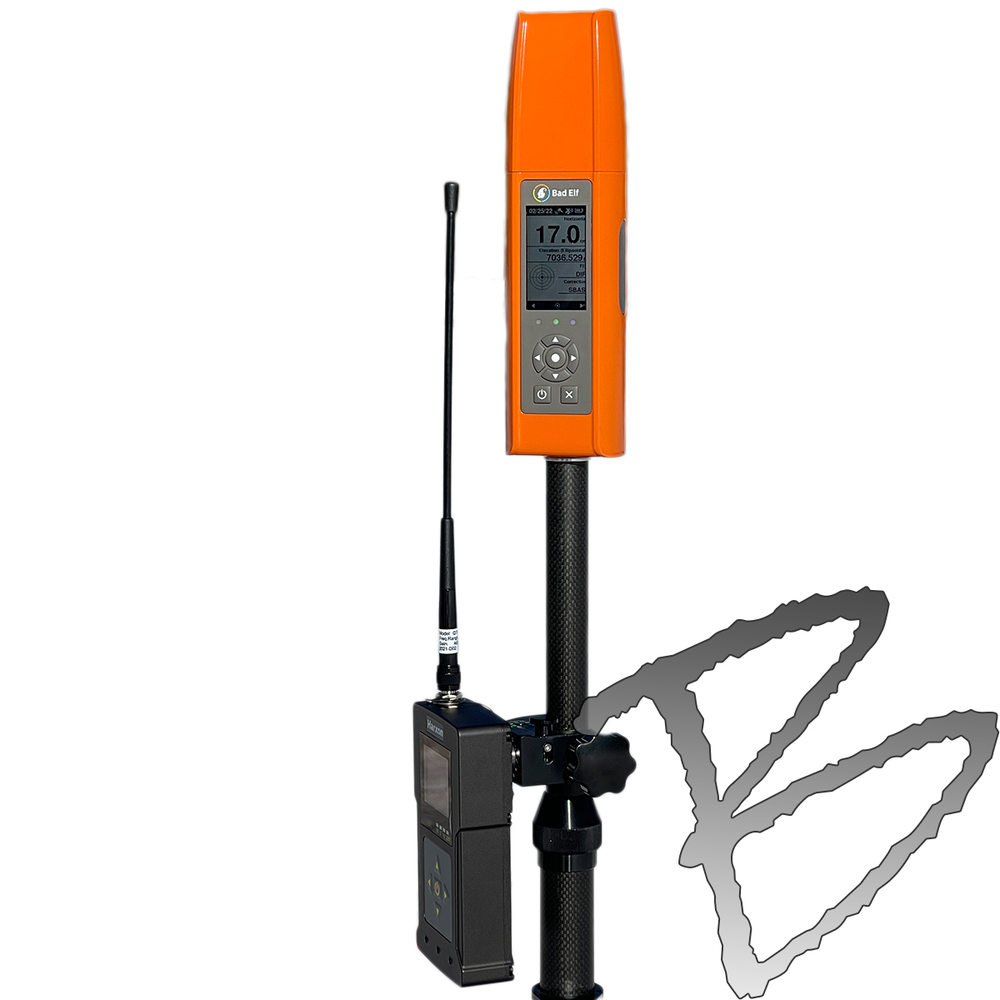

A Flex radio connects via Bluetooth to a Bad Elf Flex and requires no additional cables.
Operating Frequency: 450mHz to 470mHz frequency range.
Note: 2 radio kits are required for a full base/rover solution
HX-DU1603D is compatible with mainstream radio protocols on the market, including Trans EOT, TrimTalk450S, TrimMark3, SATEL, and other industrial manufacturer’s radio protocols.
Support Multi-mode Data Transmit
HX-DU1603D supports RS232 serial port and Bluetooth wireless technology for data transmission.
It can be integrated into outdoor base station as external radio and provide convenience for surveyors.
OLED Display for Radio Operation Configuration
HX-DU1603D enables users to easily set up radio parameters or inquire radio status via local display.
Users could set and switch serial port baud rate and channels without reaching a computer or other terminals.
Versatile Features with Reliable Performance
This small, lightweight radio provides reliable operation with sophisticated features as compact single board structure, high/low power switching, serial port baud rate switching, air baud rate switching, starting-up status identification, interference detection and remote control.
Power Consumption(typical): High power 7.5 W@12 V DC
Low Power 4.0 W@12 V DC
Standby 1.2 W@12 V DC
Frequency Stability: ≤±1.0 ppm
Structural Specification
Size 15.81" (47.6 mm) X 3.26" (83 mm) X 1.25" (31.5 mm)
Weight: Approx. .14.46 OZ (410 g)
Antenna Interface: TNC Female
Antenna Interface Impedance: 50 ohm
Data Interface: LEMO 5pin
Modem
Air Baud Rate: 9600bps / 19200bps
Serial Port Baud: 9600 bps / 19200 bps
38400 bps / 115200 bps
Transmitter
RF Output Power: 410~470 MHz
High Power (2.0W）33.5±1.0 dBm @ DC 12 V
Low Power (0.5W) 27.5±1.0 dBm @ DC 1 2V
Power Stability: ±1 dB
Adjacent Channel Power: >50 dB @ 25 KHz
Receiver
Sensitivity: -115 dBm @ BER 10-5，9600 bps
Co-channel Rejection: >-12dB
