Schonstedt Rex Multi-Frequency Pipe & Cable Locator

Schonstedt Rex Multi-Frequency Pipe & Cable Locator

$3,718.00 Sale $3,459.00

Brand: Schonstedt Instrument Company

SKU: REX

Qty:


Authorized Dealer

Made in America

Schonstedt Rex Multi-Frequency Pipe & Cable Locator
  • Get up to $150 off with Schonstedt's Trade-In Program—click here for details!
  • Rex Multi-Frequency Pipe & Cable Locator
  • 3 FREQUENCIES • 1 LOCATOR • ALL UTILITIES
  • Rex is Schonstedt’s newest pipe and cable locator, recommended for all underground utilities: water and sewer, electric, telecom, and gas.
  • Rex is a multi-frequency locator with a price tag comparable to single-frequency locators.
  • The sleek design of the transmitter is less than 2” thick and weighs less than 4 lbs.

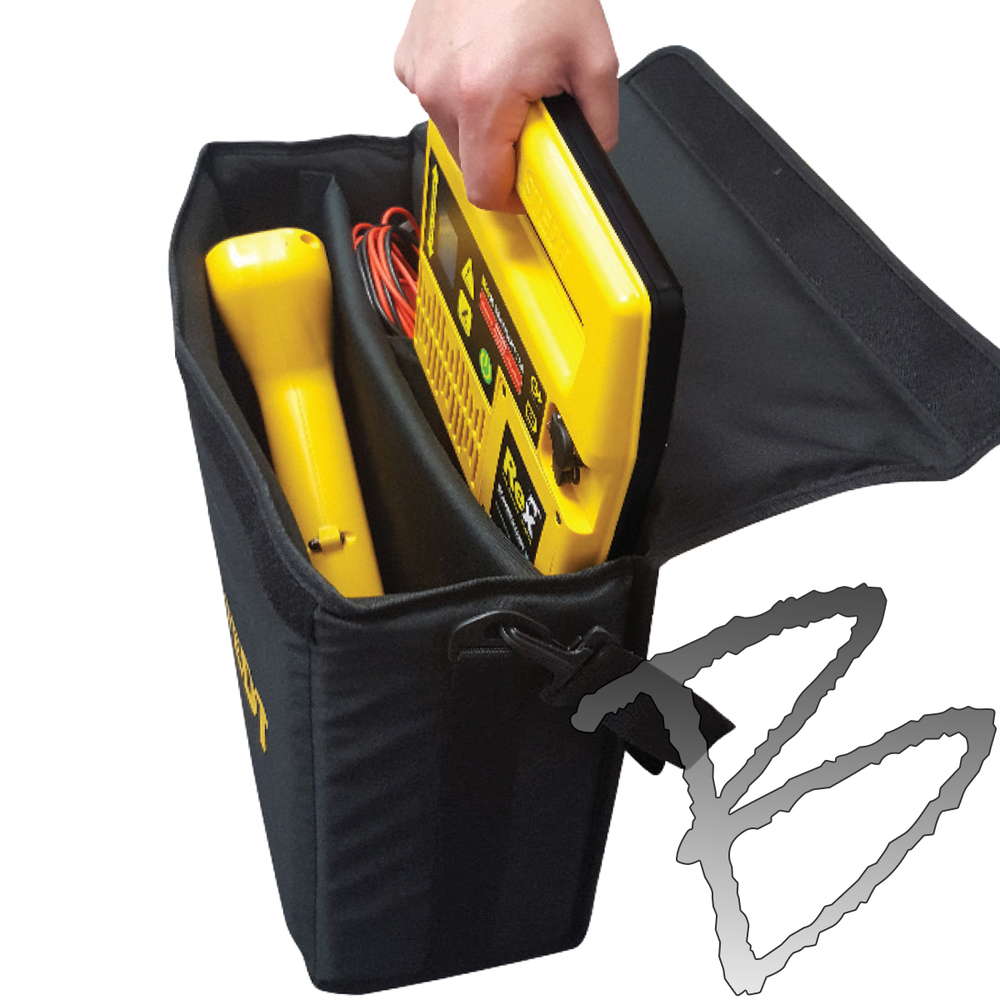

  • At slightly over 7 lbs., the entire system fits easily into a custom shoulder bag.
What Makes Rex Better?
  • Ultralight Design: Receiver + Transmitter = Under 7lbs

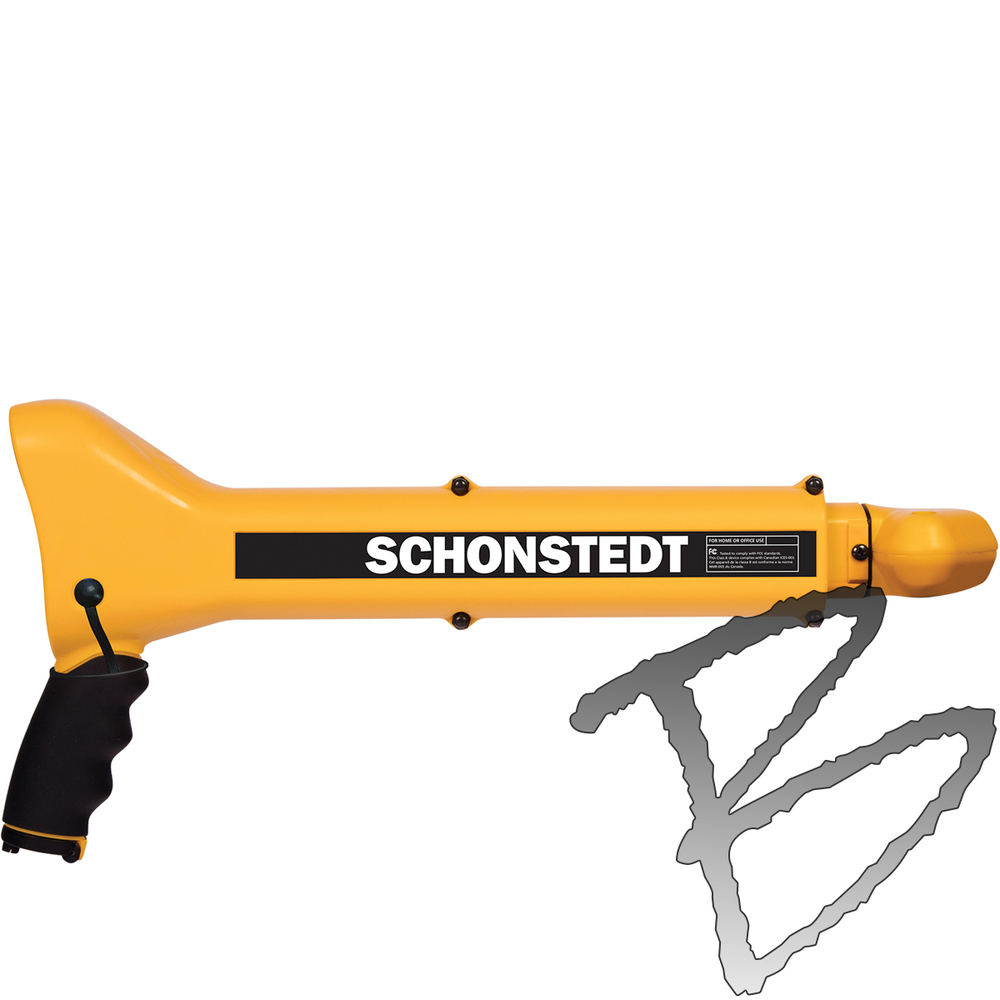

  • Compact & Portable: Receiver retracts for easy carrying
  • Multi-Frequency Versatility: 512 Hz, 33 kHz and 82 kHz plus 50/60 Hz passive and 512 Hz sonde detection.
  • Schonstedt’s 3-year warranty - Best in the industry.
Rex Specifications:

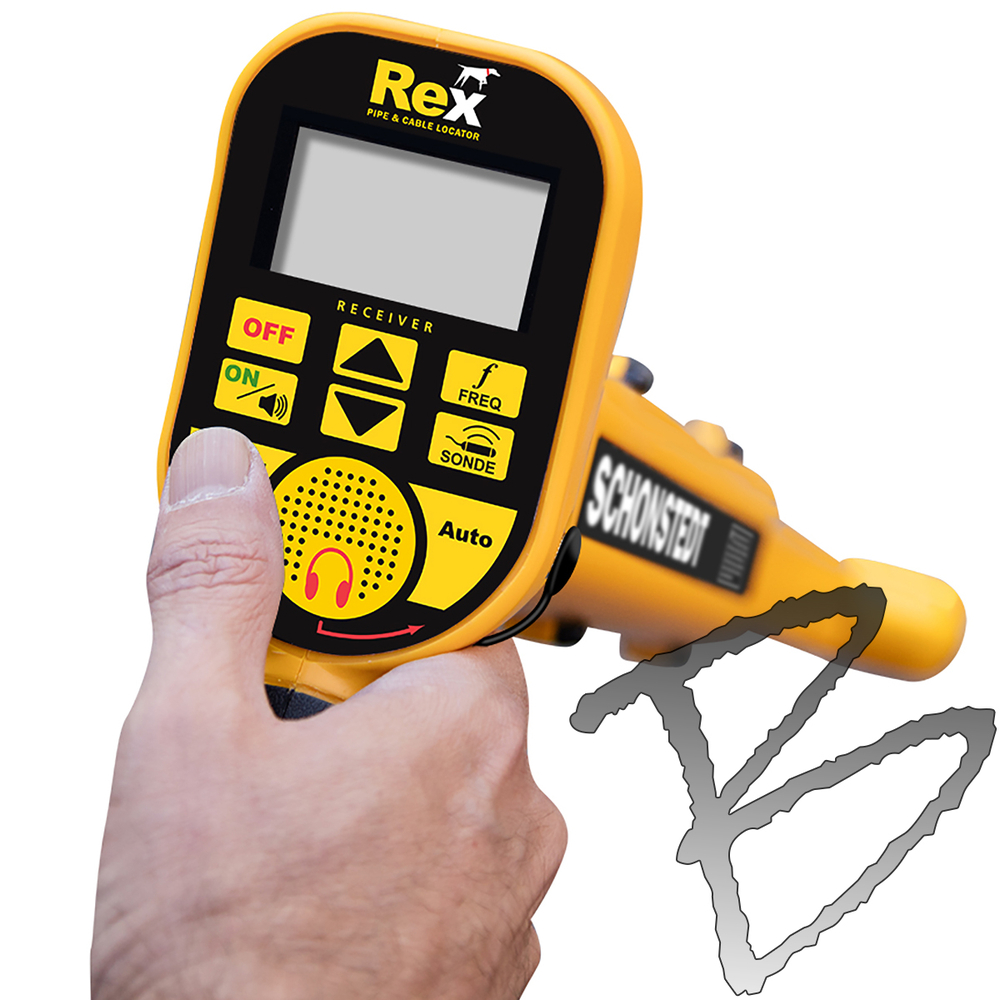

Receiver:
  • Operating Frequency: Active: 512 Hz, 33 kHz and 82 kHz. Passive: 50 or 60 Hz. Sonde: 512 Hz
  • Battery: One 9V Alkaline Battery
  • Battery Life: 12 Hours (intermittent use)
  • Weight (incl. batteries): 2.8 lbs (1.25 kg)
  • Operating Temp: -4°F to 140°F (-20°C to 70°C)
  • Water and Dust Resistance: Rated IP54
  • Overal Dimensions: Closed: 17.5 in (~44 cm.) Extended: 27.7 in (~70 cm)
  • Max. Depth Capability: Approximately 19’ (5.8 m.) Sonde mode - approximately 5’ - 15’ (1.5 m to 4.2 m)

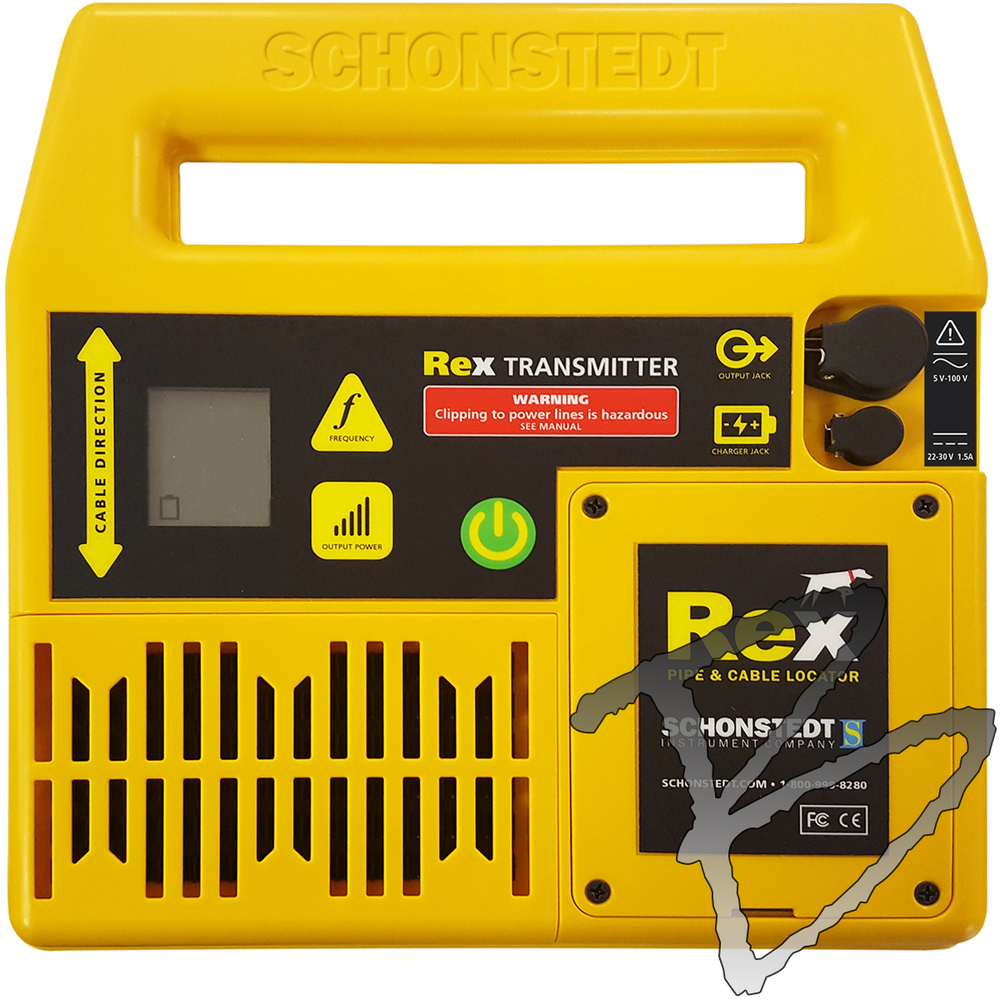

Transmitter
  • Operating Frequency: 512 Hz, 33 kHz and 82 kHz
  • Operating Modes: Conductive, Inductive, and Inductive Clamp
  • Max. Output Power (Conductive mode@ 1000 Ω load): 512 Hz; 1/2, 1, 2 or 5 W. 33 kHz; 1/2, 1, 2 or 5 W
    82 kHz; 1/2 or 1 W
  • Battery Type: Rechargeable NiMH pack (12V)
  • Battery Life: 8 Hours (intermittent usage @ 70° F)
  • Charging: Internal Smart Charger powered by AC/DC power adapter
  • Dimensions: 10”W x 10.25”D x 1.75” H (25.4 cm x 26 cm x 4.5 cm)
  • Weight: 3.5 lbs (1.6 kg)
  • Operating Temp: -4°F to 140°F (-20°C to 70°C)
  • Backlighting: White LED array
  • Water and Dust Resistance: Rated IP54



How to Locate Training Videos



Rex Brochure

Rex Manual
