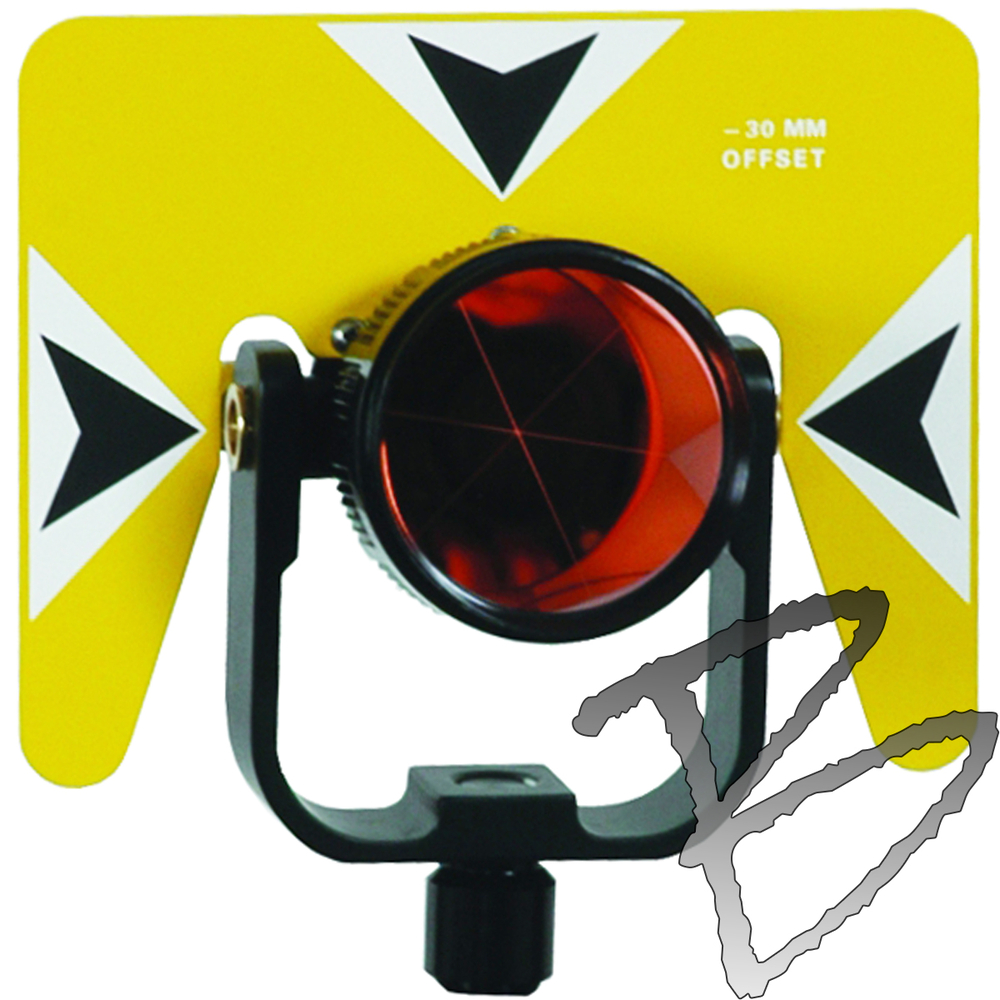

The Standard Prism Assembly features a copper-coated canister type prism.
The Canister is waterproof and has a M20 universal mounting thread.
The tilting holder is powder-painted die cast aluminum.
It uses a simple but proven locking system.
The prism can be mounted in either 0 or -30 mm offset positions.
The tilting axis height is 115 mm.
Color: Orange w/ Black (Call 877-844-3101 to order Yellow w/ Black, & Flo Yellow w/ Black)
Weighs 1.35 lb (0.62 kg)
*Prism Pole sold separately
Parts Available
6402-10-XXX - Standard Prism System
0 or -30mm offset
Height is 115 mm.
Weighs 1.35 lb (0.62 kg)
